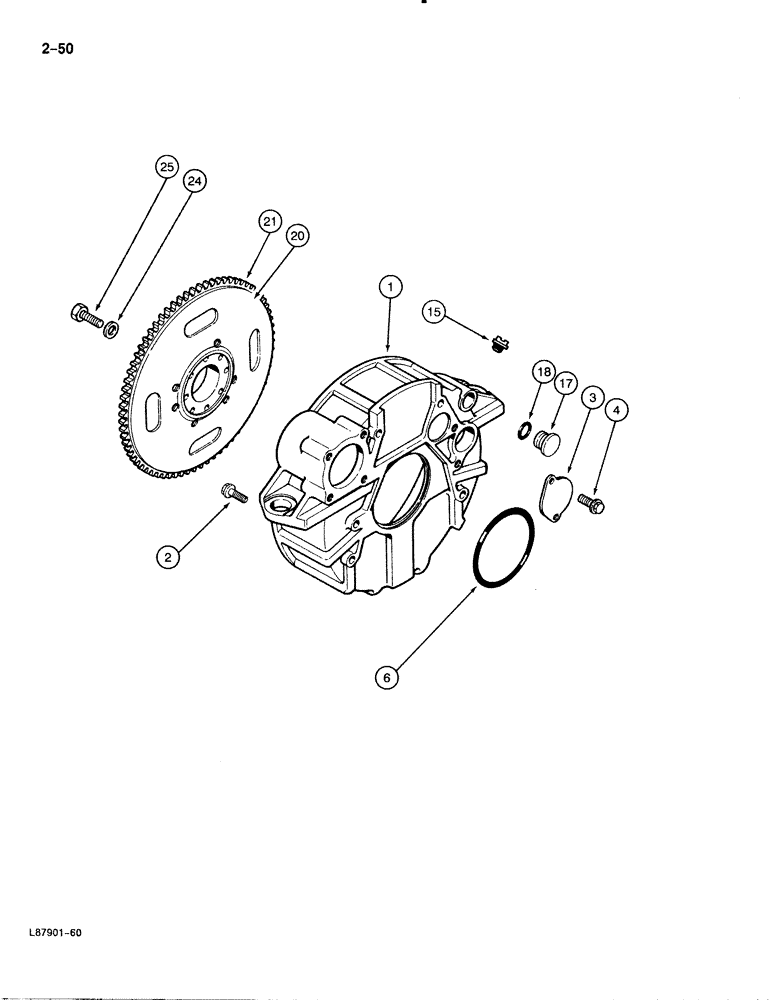

Запчасти Case 888 (2-050) - FLYWHEEL AND HOUSING, 6T-590 DIESEL ENGINE (02) - ENGINE

1

J903287

CASE

HOUSING - flywheel

1шт.

2

854-12040

BOLT,Hvy Hex, M12 x 40mm, Cl 10.9

- heavy hex flange, 12 mm - 1.75 x 40 mm

8шт.

3

J908095

PLATE

- cover

1шт.

4

J902735

BOLT,M8 - 1.25 x 21 mm

- hex, plate retaining

2шт.

6

J912473

SEAL,157mm ID x 163.18mm OD x 7.03mm Thk

O-RING - housing to block (Replaces A157927)

1шт.

15

353-225

PLUG,Sltd Hd, 3/4"-16

- plastic, slotted hex, 3/4 inch NF

1шт.

17

J910248

PLUG

- housing

1шт.

18

238-5212

O-RING,0.139" Thk x 0.859" ID, -212, Cl 5, 75 Duro

(Replaces 253070R1) -212, 70 Duro, .859" ID x .139" Thk

1шт.

20

J907466

FLYWHEEL

ASSEMBLY - engine, Includes: Ref. 21

1шт.

21

J905427

GEAR

- ring, flywheel

1шт.

Ref #21 - (127 Teeth)

1шт.

24

J900269

WASHER,12.76mm ID x 25.5mm OD x 1.65mm Thk

- flat, flywheel bolt

8шт.

25

J901395

BOLT,Hex, M12 x 1.25 x 32mm, Cl 12.9

BOLT - hex, 12 mm - 1.25 x 32 mm

8шт.
