(4-014) - ENGINE ELECTRICAL SYSTEM, ENGINE GROUND CABLE

Запчасти Case 888 (4-014) - ENGINE ELECTRICAL SYSTEM, ENGINE GROUND CABLE (04) - ELECTRICAL SYSTEMS

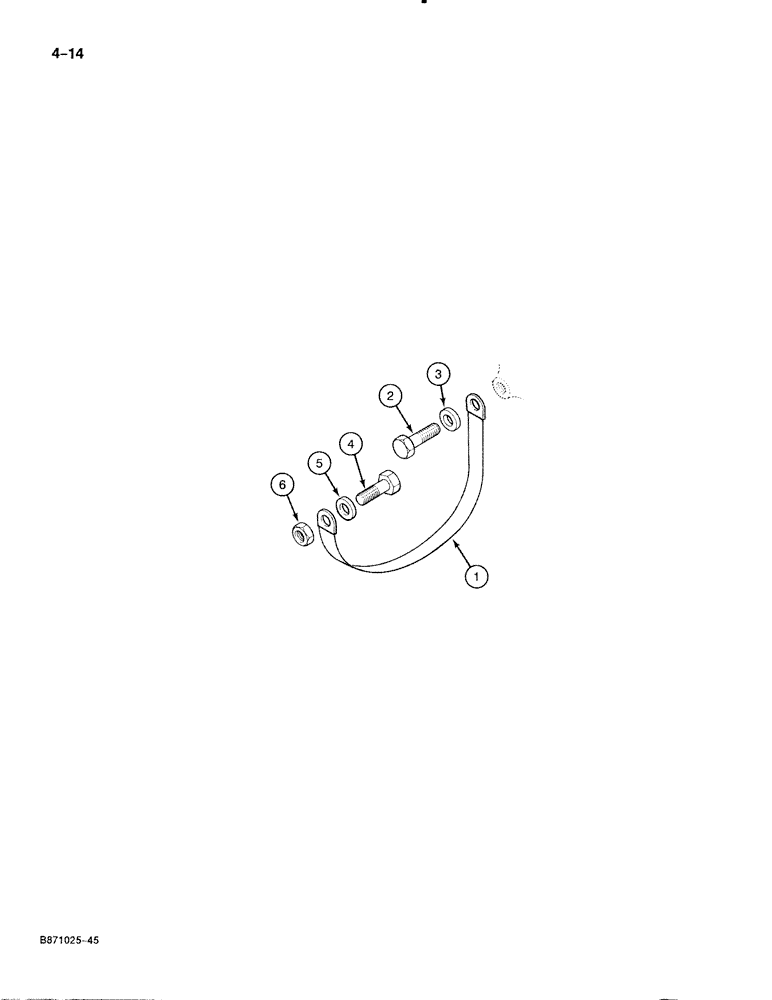

Схема запчастей Case 888 - (4-014) - ENGINE ELECTRICAL SYSTEM, ENGINE GROUND CABLE (04) - ELECTRICAL SYSTEMS
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

P1047299

NEG BATTERY CABLE

CABLE - engine, Serial Range: ground-frame

1шт.

2

P33840

SCREW

BOLT - hex, 12 mm x 30 mm

1шт.

3

P3528793

WASHER

SPACER - bolt, 8 mm thick

1шт.

4

43127

BOLT,Hex, M8 x 1.25 x 25mm, Cl 8.8

BOLT, Hex, M8 x 25, 8.8

1шт.

5

P3528794

WASHER

TERMINAL - battery cable, at starter solenoid

1шт.

6

P34113

NUT

- hex, 8 mm

1шт.
