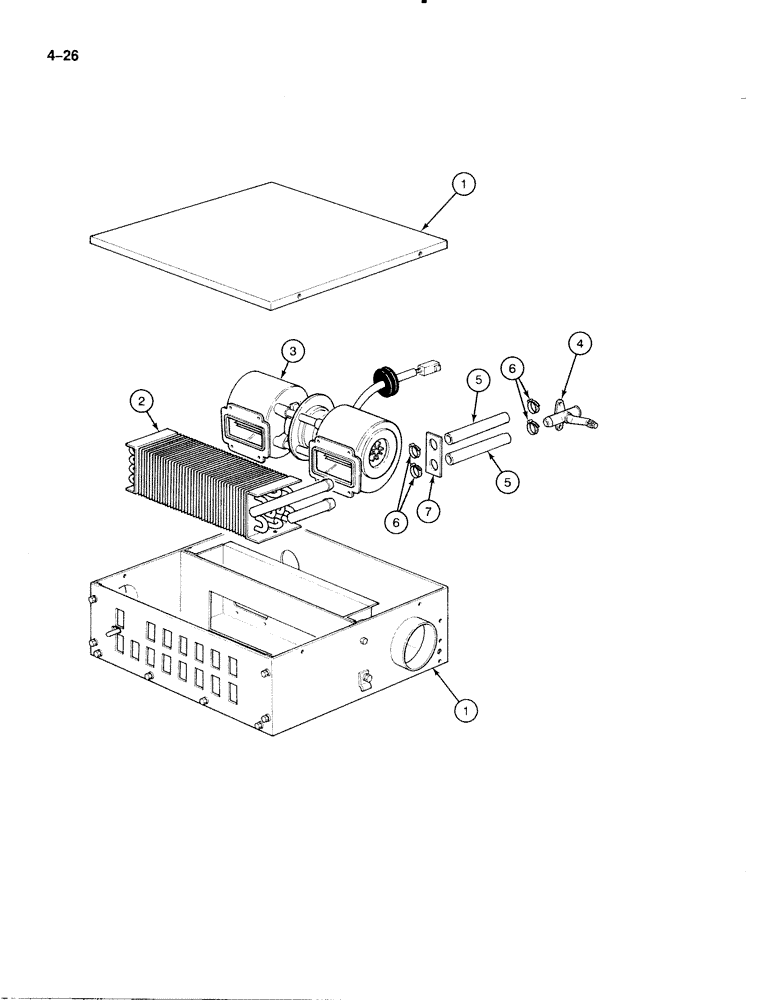

Запчасти Case 888 (4-026) - CAB HEATER, SCHNEEBELI - CHABAUD IF USED, P.I.N. FROM 74163 TO 74277, 74280, 74281 (04) - ELECTRICAL SYSTEMS

P1241896

HEATER

- cab, (Order P1941806 see figure 4-28), Includes: Ref. 1 - 7

1шт.

1

NSS

NOT SOLD SEPARAT

HOUSING - heater

1шт.

THE SMALL PIECE TO THE LEFT OF #1 HAS NO PART # -- OBTAIN LOCALLY.

1шт.

2

P3743258

HEATER

CORE - heater

1шт.

3

P1941818

VENTILATOR

BLOWER ASSEMBLY - air cab

1шт.

4

P837861

COCK

VALVE - heater control

1шт.

5

P6731990

LARGE HOSE

HOSE - heater core

2шт.

6

P3036970

CLAMP

- heater core hose

4шт.

7

P9346022

SEAL

- core

1шт.
