(4-028) - CAB HEATER, KYSOR IF USED, P.I.N. FROM 74278, 74279, 74282, AND AFTER

Запчасти Case 888 (4-028) - CAB HEATER, KYSOR IF USED, P.I.N. FROM 74278, 74279, 74282, AND AFTER (04) - ELECTRICAL SYSTEMS

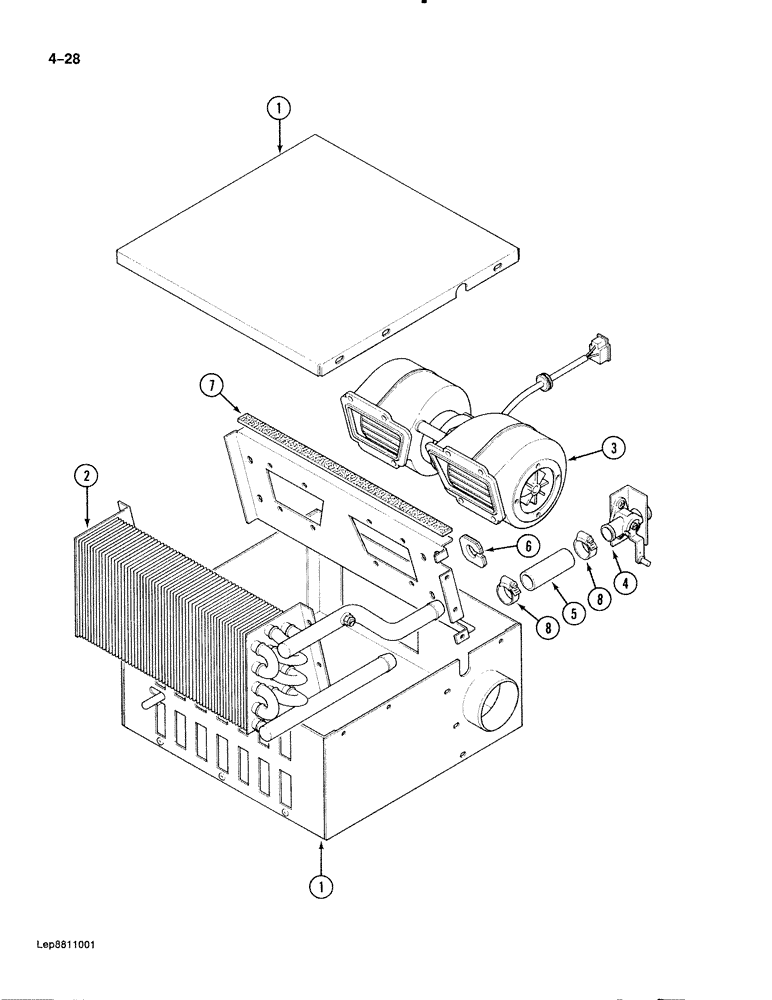

Схема запчастей Case 888 - (4-028) - CAB HEATER, KYSOR IF USED, P.I.N. FROM 74278, 74279, 74282, AND AFTER (04) - ELECTRICAL SYSTEMS
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

P1941806

HEATER ASSY.

HEATER - cab, (Replaces P1241896), Includes: Ref. 1 - 8

1шт.

1

NSS

NOT SOLD SEPARAT

HOUSING - heater

1шт.

2

P3743259

RADIATOR

CORE - heater

1шт.

3

P1241853

TURBINE

BLOWER ASSEMBLY - air cab

1шт.

4

P837862

COCK

VALVE - heater control

1шт.

5

P7331903

LARGE HOSE

HOSE - heater core

1шт.

6

P9346027

SEAL

- housing

2шт.

7

P9346026

SEAL

-, Serial Range: core-blower

2шт.

8

P3036994

CLAMP

- heater core hose

2шт.
