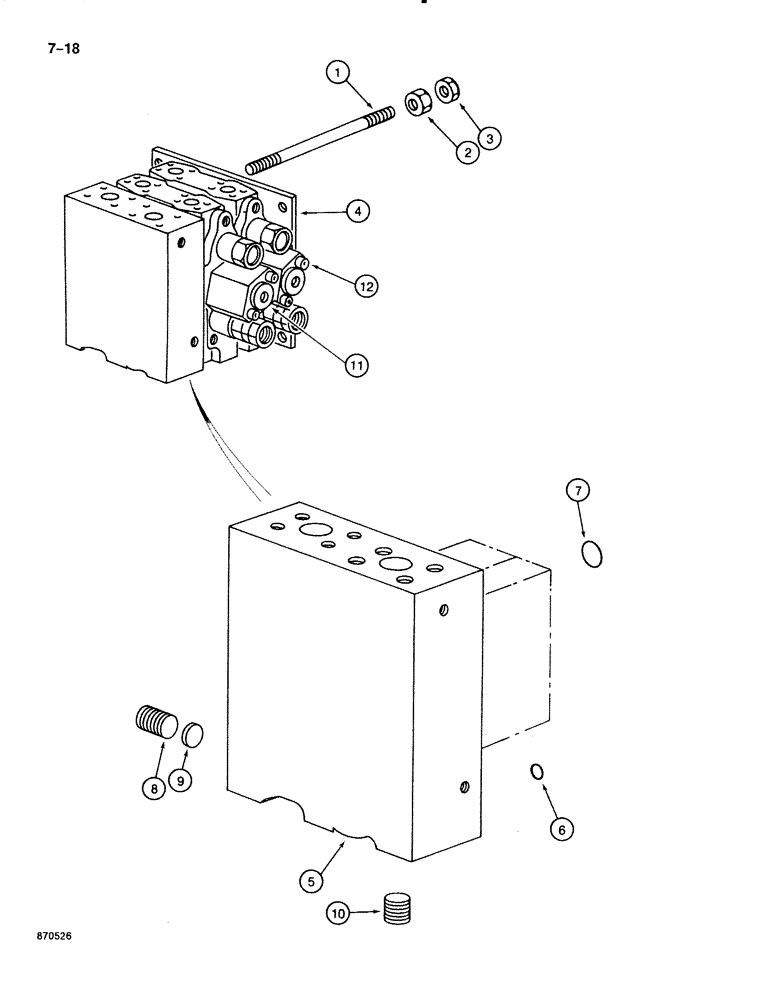

Запчасти Case 888 (7-018) - DRIVE CONTROL VALVE, P.I.N. FROM 74163 TO 74212 (07) - BRAKES

1

P2527739

STEM

STUD - control valve sections

3шт.

2

P34169

NUT

- hex, 16 mm

3шт.

3

P34564

NUT

- hex, self locking, 16 mm

3шт.

4

P3143639

LARGE PLATE

PLATE - mounting, drive control valve

1шт.

P3143638

LARGE PLATE

SECTION ASSEMBLY - inlet and outlet, drive control valve

1шт.

5

NSS

NOT SOLD SEPARAT

SECTION - inlet and outlet

1шт.

6

P2230466

O-RING,0.07" Thk x 0.489" ID, -14, Cl 6, 90 Duro

- inlet and outlet section, small

1шт.

7

P2230467

O-RING,0.103" Thk x 1.11" ID, -122, Cl 5, 75 Duro

- inlet and outlet secting, large

4шт.

8

P737453

PLUG

- section

1шт.

9

P645050

HOLE PLUG BUTTON

DISC - section plug

1шт.

10

P3037414

PLUG

- secting

1шт.

11

REF

INSTRUCTION

SECTION ASSEMBLY - track drive, center, left-hand drive motor, see figure 7-20

1шт.

12

REF

INSTRUCTION

SECTION ASSEMBLY - track drive, inside, right-hand drive motor, see figure 7-20

1шт.
