(5-20) - TRACK IDLER AND ADJUSTMENT CYLINDER, P.I.N. 15401 THRU 15628, P.I.N. 106801 THRU 106807

Запчасти Case 888 (5-20) - TRACK IDLER AND ADJUSTMENT CYLINDER, P.I.N. 15401 THRU 15628, P.I.N. 106801 THRU 106807 (11) - TRACKS/STEERING

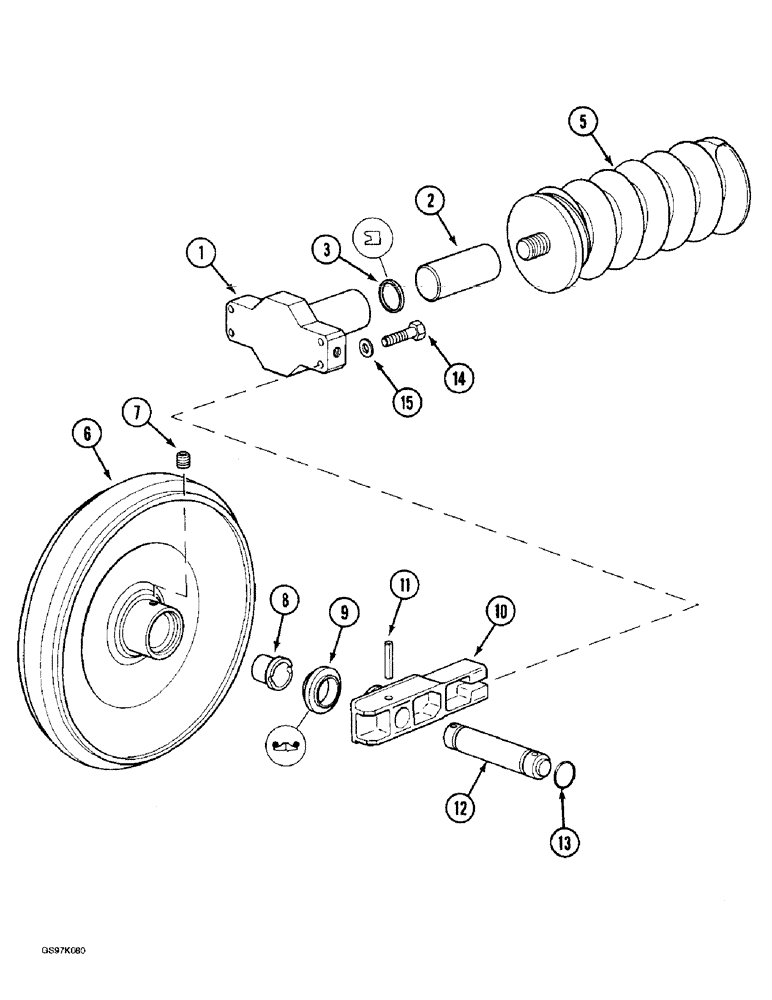

Схема запчастей Case 888 - (5-20) - TRACK IDLER AND ADJUSTMENT CYLINDER, P.I.N. 15401 THRU 15628, P.I.N. 106801 THRU 106807 (11) - TRACKS/STEERING
15
9
6
7
14
2
8
11
12
3
5
13
1
10
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

P7946201

SUPPORT

CYLINDER ASSEMBLY - track adjustment, Includes: Ref. 1 - 3

2шт.

1

NSS

NOT SOLD SEPARAT

CYLINDER - track adjustment, includes bracket, order cylinder assembly P7946201

1шт.

2

P7946203

PISTON

- adjustment cylinder

1шт.

3

P8846092

SEAL

- piston

1шт.

5

P7946202

SHOCK ABSORBER

SPRING - track, shock absorber

2шт.

P1642335

FRONT IDLER

IDLER ASSEMBLY - track, Includes: Ref. 6 - 13

2шт.

6

NSS

NOT SOLD SEPARAT

WHEEL - idler, order idler assembly P1642335

1шт.

7

P2537437

PLUG

- filler, idler wheel

1шт.

8

P1528667

BUSHING

- idler wheel

2шт.

9

P9346013

SET OF GASKET

SEAL - oil, idler wheel

2шт.

10

P5028281

SUPPORT

BRACKET - idler wheel

2шт.

11

P435736

SPLIT PIN/SAFETY PIN

PIN - roll, idler, Serial Range: shaft-bracket

2шт.

12

P5327859

SHAFT

- idler wheel

1шт.

13

P2230439

O-RING

- idler shaft

2шт.

14

814-16060

BOLT,Hex, M16 x 2 x 60mm, Cl 8.8

- hex, 16 - 2 x 60 mm, class 10.9 (Replaces bolt P133805)

2шт.

15

P1945390

WASHER

- flat, 16 mm

4шт.
