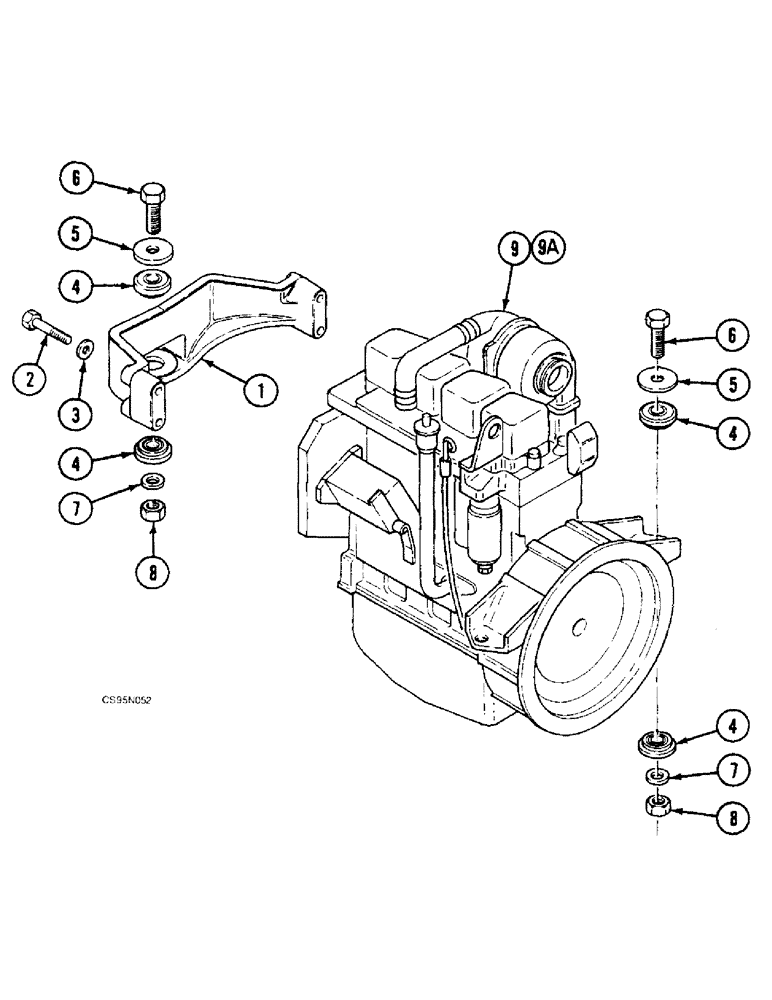

Запчасти Case 688BCK (2-02) - ENGINE MOUNTING, 688D CK (120301-) (01) - ENGINE

1

R2346199

FOOT

SUPPORT

1шт.

2

86508581

BOLT,Hex, M12 x 90mm, Cl 8.8

4шт.

3

U3528793

WASHER

12.25 x 8 x 30

4шт.

4

M4441472

HITCH DAMPER

SUPPORT

6шт.

5

M2745406

WASHER

1 x 70 x 5

3шт.

6

350616

BOLT,M16 x 2 x 90mm, Cl 8.8

3шт.

7

R3528790

WASHER

16.5 x 11 x 38

3шт.

8

S34562

SAFETY NUT

M16

3шт.

9

1989060C2

ENGINE ASSEMBLY

ENGINE ASSY MOTOR, 20303 CONSISTS OF FIGURES: 2-18 - 2-48, 3-22 - 3-30 INCLUDES ALL PARTS EXCEPT: STARTER, ALTERNATOR, FAN, FAN BELT, AIR CLEANER, MUFFLER AND EXHAUST PIPE.

1шт.

9a

1989092C2

BASIC ENGINE

ENGINE, 20303 SEE: N.I.T. 3214 CONSISTS OF FIGURES: 2-18 - 2-48 INCLUDES ALL PARTS EXCEPT: STARTER, ALTERNATOR, FAN, FAN BELT, FAN BRACKET, AIR CLEANER, MUFFLER, EXHAUST MAINIFOLD, FLYWHEEL AND HOUSING, OIL FILL AND DIPSTICK, FUEL INJECTION PUMP

1шт.

9a

1989092C3R

REMAN-BASIC ENGINE

1шт.

9a

1989092C3C

CORE-BASIC ENGINE

Return Part Number

1шт.
