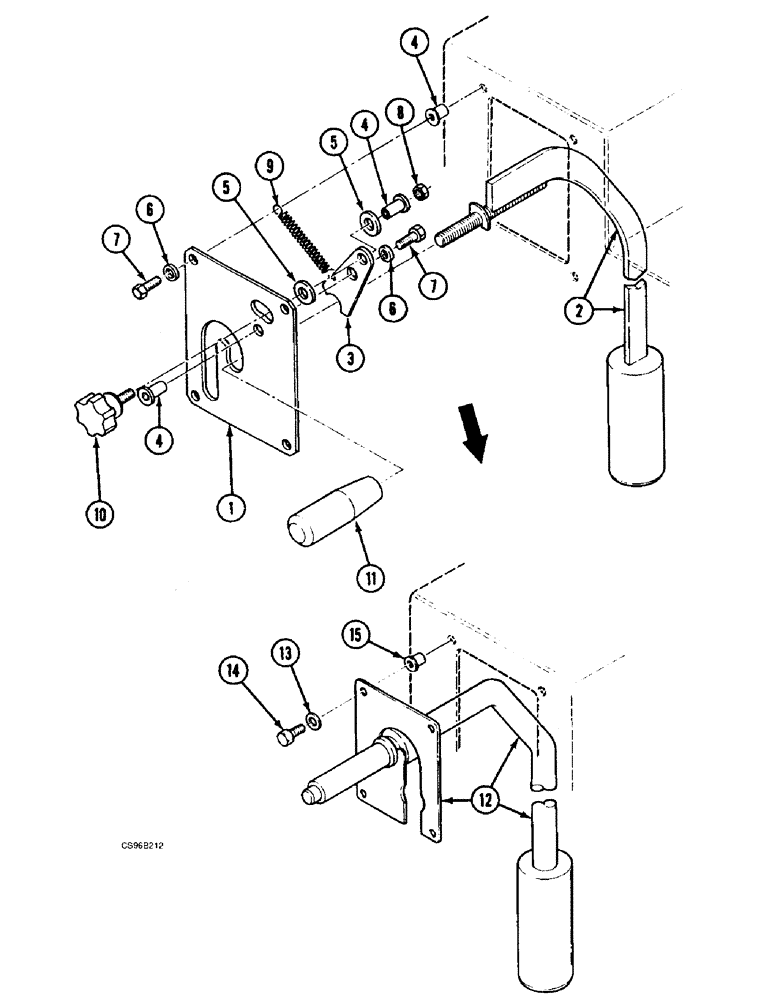

Запчасти Case 688BCK (9D-30) - UPPERSTRUCTURE SWING LOCKING CONTROL, 688B CK (120301-120531, 120543) 688B CK (120301-120337) (05.1) - UPPERSTRUCTURE CHASSIS/ATTACHMENTS

1

W1323647

LARGE PLATE

PLATE, LARGE SHEET

1шт.

2

J8028273

LARGE PIN

PIN, LARGE

1шт.

3

X1323648

ARRESTER

LATCHING DEVICE

1шт.

4

F35425

RIVET

M6

6шт.

5

V34611

WASHER

M10 U

2шт.

6

R34607

WASHER

M6 U

5шт.

7

86508568

BOLT,Hex, M6 x 1 x 16mm, Cl 8.8

5шт.

8

F234513

SAFETY NUT

M6

1шт.

9

Z38087

SPRING

1шт.

10

K2741609

BUTTON

1шт.

11

V4741446

HANDLE

1шт.

12

R8128238

LARGE PIN

PIN, LARGE

1шт.

13

R34607

WASHER

M6 U

4шт.

14

86508568

BOLT,Hex, M6 x 1 x 16mm, Cl 8.8

4шт.

15

F35425

RIVET

M6

4шт.
