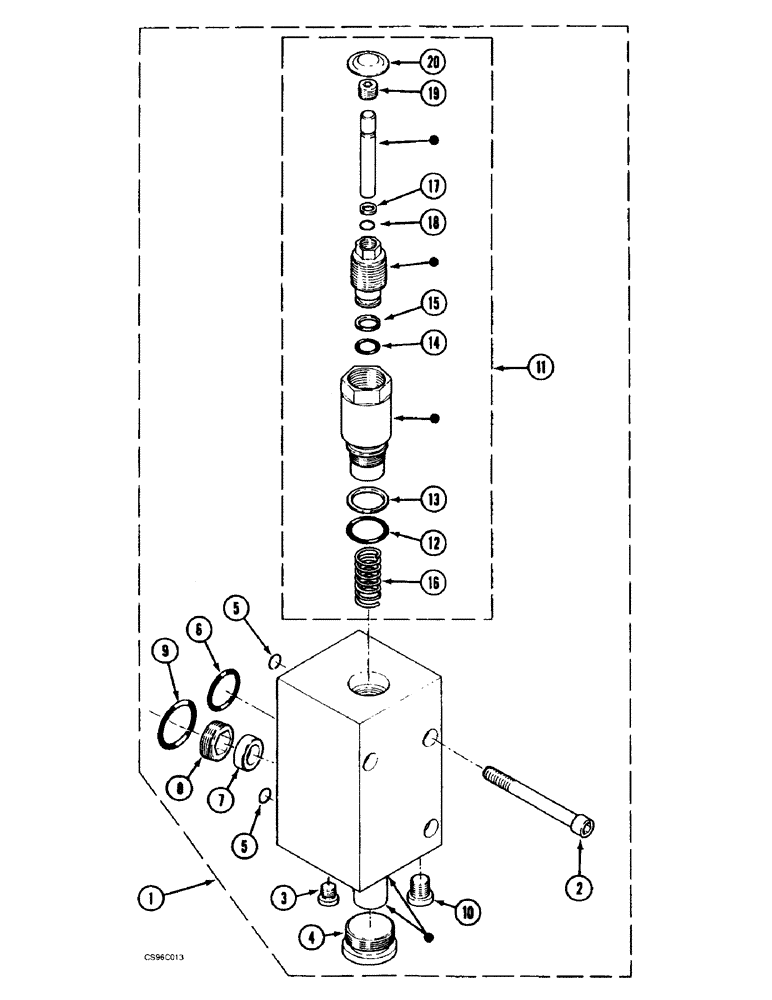

Запчасти Case 688BCK (7-20) - SPEED CONTROL LIMITER, 688B CK (120301-120467) (07.1) - UNDERCARRIAGE HYDRAULICS

1

J4043661

SHIN

LIMITER

1шт.

2

C32938

SCREW,M10 x 80mm

M10 x 80

3шт.

3

V2537448

PLUG

M10 x 1.0MM

1шт.

S2230441

GASKET

8.4 x 11.9 x 1

1шт.

4

B2537430

PLUG

M33 x 2.0MM

1шт.

T945294

GASKET

29.7 x 35.7 x 2

1шт.

5

G2230454

O-RING

2шт.

6

N630442

O-RING

3.53 x 28.17

1шт.

7

G9846007

RING

BUSHING

1шт.

8

T3737494

PLUG

1шт.

9

P630443

O-RING

3.53 x 29.74

1шт.

10

U2537447

PLUG

M14 x 1.5MM

1шт.

R7046042

GASKET

11.5 x 16.5 x 1.5

1шт.

11

T4043670

SET

CARTRIDGE

1шт.

12

R2230463

O-RING,0.103" Thk x 0.987" ID, -120, Cl 5, 75 Duro

2.65 x 25

1шт.

13

N1245232

RING

BUSHING

1шт.

14

Q2230462

O-RING,0.103" Thk x 0.549" ID, -113, Cl 6, 90 Duro

2.65 x 14

1шт.

15

M1245231

BACK-UP RING

1шт.

16

W2838174

SPRING

1шт.

17

J2445207

RING

BACK-UP

1шт.

18

F1630452

HYDRAULIC SWIVEL

O RING

1шт.

19

W3733012

SET SCREW

1шт.

20

Z3737499

PLUG

BLANK-OFF

1шт.
