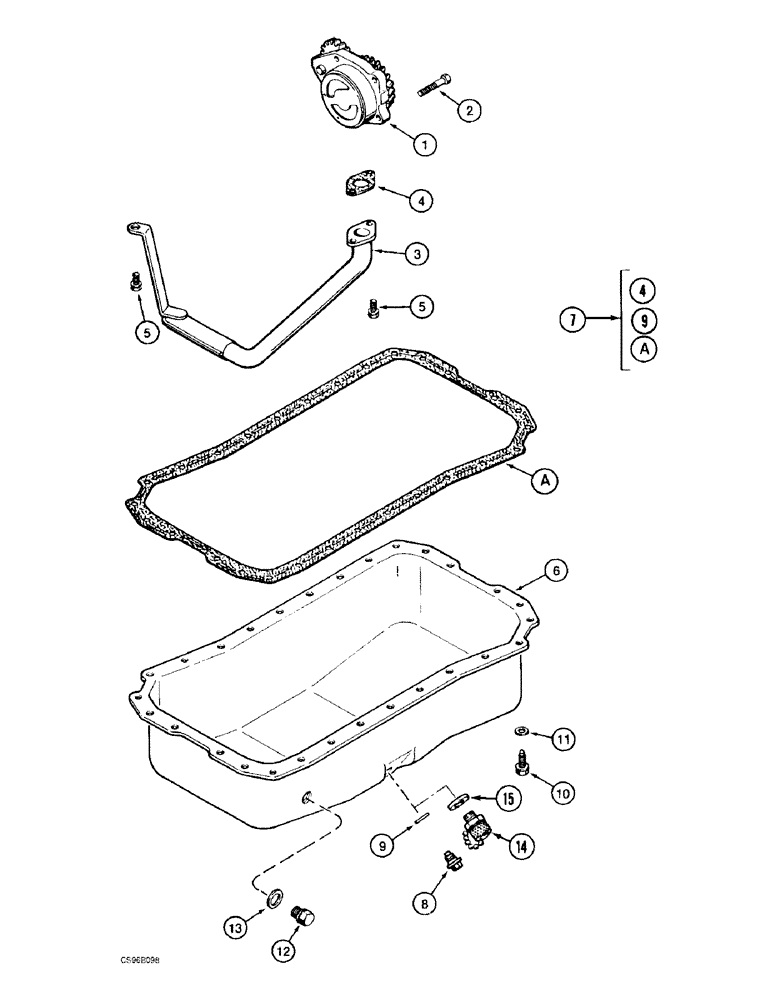

Запчасти Case 688BCK (2-30) - OIL PUMP AND OIL PAN, 688B CK (120301-) (01) - ENGINE

1

J926202

PUMP, ENGINE OIL

1шт.

2

614-8030

BOLT,Hex, M8 x 1.25 x 30mm, Cl 8.8, Full Thd

4шт.

3

J905223

TUBE

1шт.

4

J914383

GASKET

1шт.

5

845-8016

BOLT,Hvy Hex, M8 x 16mm, Cl 8.8

3шт.

6

J907570

PAN

HOUSING

1шт.

7

A77673

GASKET KIT

1шт.

8

J924147

PLUG,M18 x 1.5

M18

1шт.

9

J920773

SEALING WASHER

1шт.

10

J920400

FLANGE BOLT,Hex, M8 x 1.25 x 21mm, Gr 8.8

M8 x 25

28шт.

11

J907537

SPRING WASHER

28шт.

12

J924148

PLUG,M22 x 1.5

M22

1шт.

13

J902425

SEALING WASHER,22.2mm ID x 26.9mm OD x 1.75mm Thk

SEAL

1шт.

14

X3737452

PLUG, DRAIN

1шт.

15

S545208

WASHER, SEALING

SEAL WASHER 18.2 x 23.9 x 1.5

1шт.
