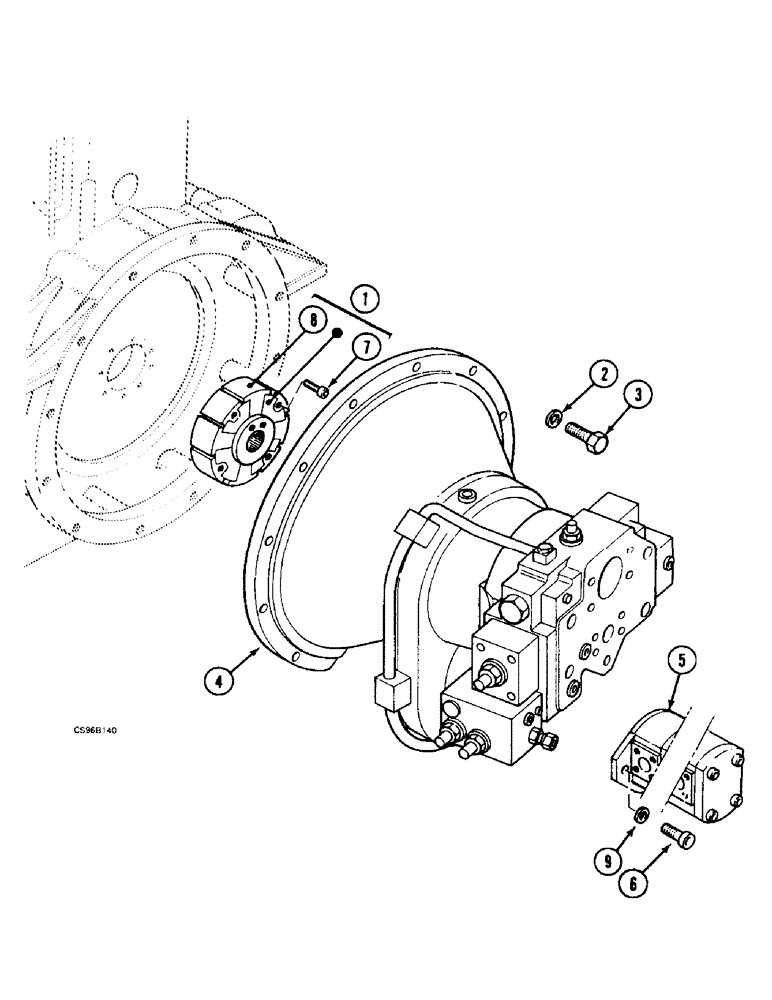

Запчасти Case 688BCK (8B-02) - PUMP COUPLING, 688B CK (120301-) (07) - HYDRAULIC SYSTEM

1

H8646259

COUPLING

1шт.

2

N4328796

WASHER

10.25 x 7 x 20

10шт.

3

120112

BOLT,Hex, M10 x 1.5 x 40mm, Cl 8.8, Full Thd

10шт.

4

REF

INSTRUCTION

PUMP SEE FIGURE: 8B-12

1шт.

5

REF

INSTRUCTION

PUMP SEE FIGURE: 8B-20

1шт.

6

86632600

HEX SOC SCREW,M10 x 20mm, Cl 8.8

2шт.

7

D32962

SCREW

M16 x 50

4шт.

8

J9846055

BACK-UP RING

1шт.

9

T1545410

WASHER

11 x 2 x 18

2шт.
