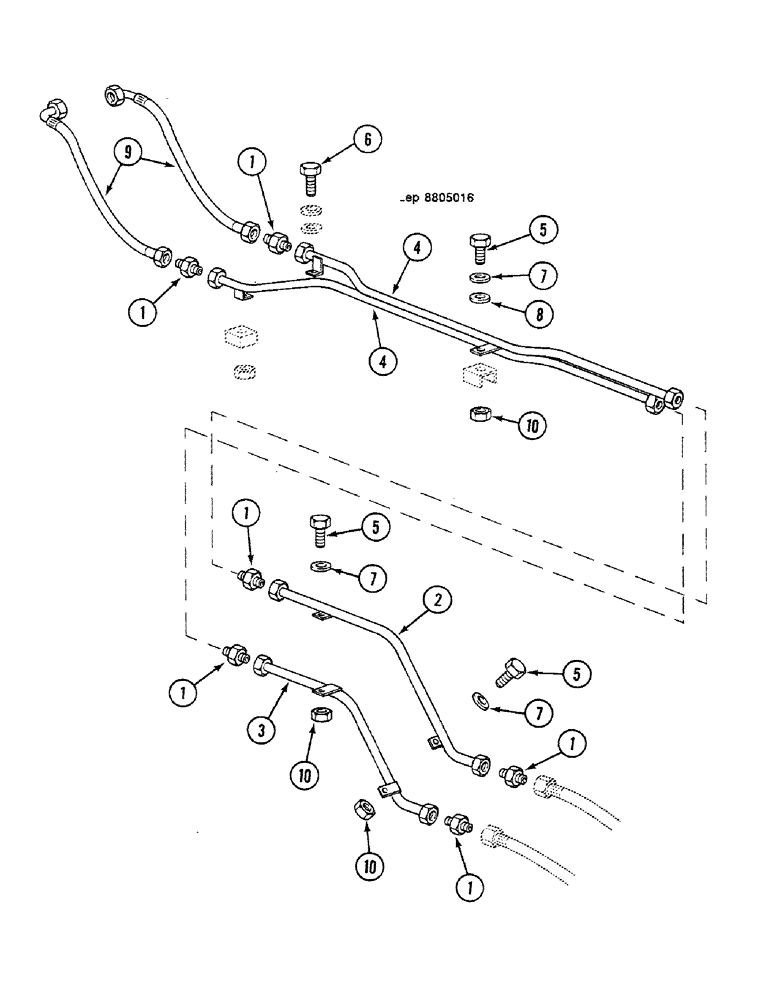

Запчасти Case 688C (8F-18) - CLAMSHELL SWING FEED (REMOTE-CONTROLLED BOOM) (07) - HYDRAULIC SYSTEM

1

M3237537

UNION

6шт.

2

S3050161

PIPE

1шт.

3

T3050162

PIPE

1шт.

4

T3050185

RETURN PIPE

1шт.

5

120112

BOLT,Hex, M10 x 1.5 x 40mm, Cl 8.8, Full Thd

M60 x 40 x 40

3шт.

6

614-10060

BOLT,Hex, M10 x 1.5 x 60mm, Cl 8.8, Full Thd

2шт.

7

W3528795

WASHER

"10.25 x 7 x 25"

3шт.

8

H1245227

WASHER

D10L

1шт.

9

X5431931

HOSE

1000mm

2шт.

10

G34598

SAFETY NUT

M10

3шт.
