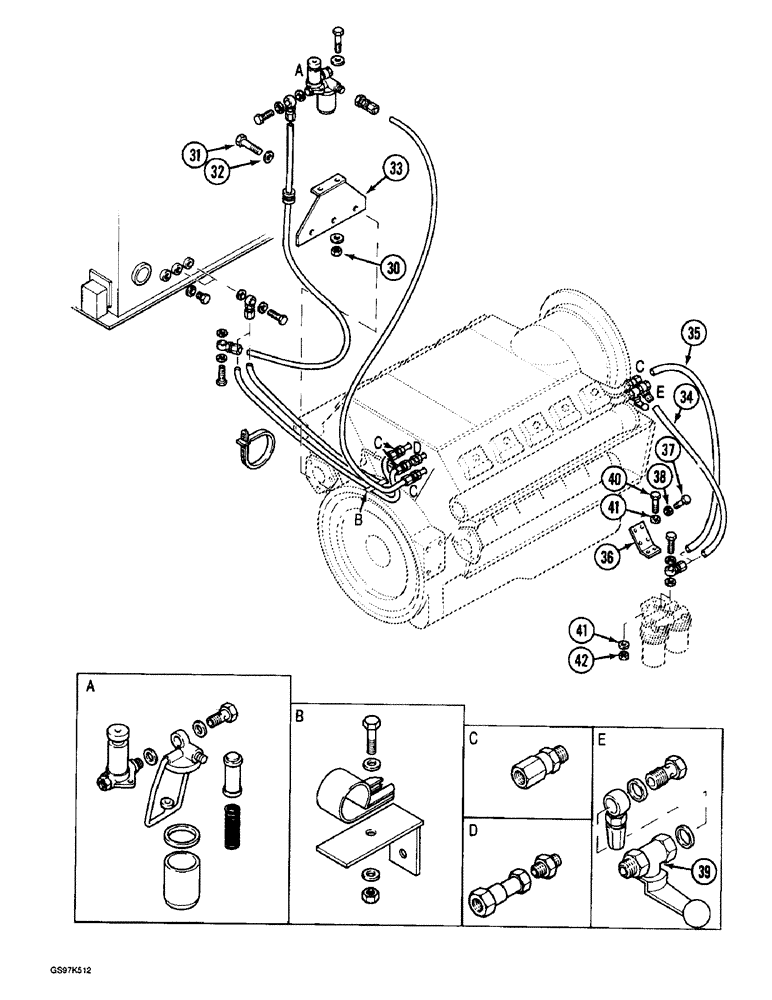

Запчасти Case 220B (3-10) - FUEL LINES AND FITTINGS, P.I.N. 74570 THROUGH 74597, P.I.N. 03201 AND AFTER (CONT) (03) - FUEL SYSTEM

30

832-10406

NUT,M6 x 1, Cl 8

LOCK, , Pump mounting bolt (Replaces nut P234513) M6 x 1, Cl 8

2шт.

31

614-12025

BOLT,Hex, M12 x 1.75 x 25mm, Cl 8.8, Full Thd

- bracket mounting, hex, full threads, 12 - 1.75 x 25 mm (Replaces bolt P33873)

2шт.

32

P3528793

WASHER

SPACER - bracket mounting bolt

2шт.

33

P4728107

SUPPORT

BRACKET - hand pump and, Serial Range: filter-engine

1шт.

34

REF

INSTRUCTION

HOSE - fuel, shutoff valve to filter, 700 mm (27-9/16 inch) long, cut from bulk hose P3682 below

1шт.

35

REF

INSTRUCTION

HOSE - fuel, engine to filter, 800 mm (31-1/2 inch) long, cut from bulk hose P3682 below

1шт.

36

P2226708

SUPPORT

BRACKET - filter mounting, no longer available

1шт.

37

386045

BOLT,Hex, M8 x 1.25 x 45mm, Cl 8.8

BOLT, , Bracket Mounting Hex, M8 x 45, 8.8

4шт.

38

P3528794

WASHER

SPACER - bracket mounting bolt

4шт.

39

P837836

COCK

VALVE - shutoff, fuel, Serial Range: hose-filter

1шт.

40

P933820

SCREW

BOLT - filter mounting

2шт.

41

P3528793

WASHER

SPACER - filter mounting bolt

4шт.

42

832-10412

NUT,M12 x 1.75, Cl 8

NUT, LOCK, , Filter mounting bolt (Replaces nut P34596) M12 x 1.75, Cl 8

2шт.

P3682

TUBE

HOSE - bulk, sold by the meter

1шт.
