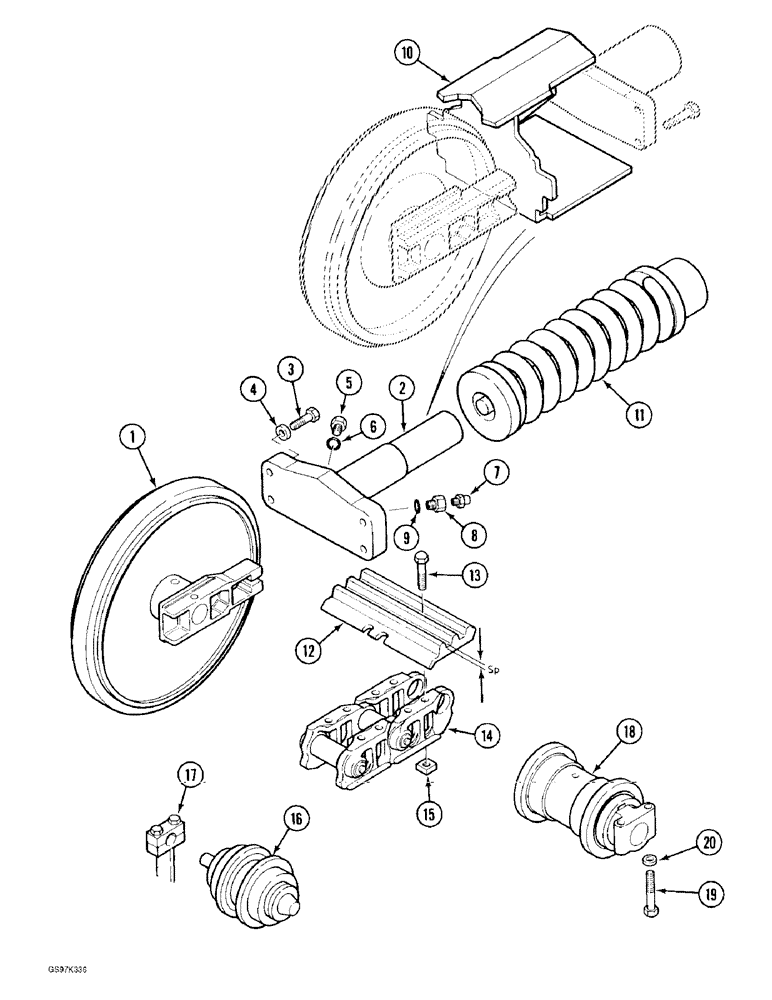

Запчасти Case 170C (5-06) - TRACK SHOES AND ADJUSTMENT CYLINDER MOUNTING, P.I.N. 74501 AND AFTER (11) - TRACKS/STEERING

1

REF

INSTRUCTION

IDLER ASSEMBLY - track, parts list Figures 5-10 through 5-14

2шт.

2

REF

INSTRUCTION

CYLINDER ASSEMBLY - track adjustment, see Figures 5-10 and 5-14 for cylinder assembly identification and components

2шт.

3

814-14100

BOLT,Hex, M14 x 2 x 100mm, Cl 8.8

adjustment cylinder to idler (Replaces bolt P33879) Hex, M14 x 100, 8.8

8шт.

4

P4528704

WASHER

SPACER - cylinder bolt, 17 mm thick

8шт.

P2537413

PLUG

ASSEMBLY - adjustment cylinder, no longer available, order plug P3337446, item 21, Includes: Ref 5-9

2шт.

5

NSS

NOT SOLD SEPARAT

PLUG - adjustment cylinder, order plug assembly P2537413

1шт.

6

P1230443

O-RING

SEAL - plug (Replaces seal P1145268)

1шт.

P3043319

BLOCK ASSY.

ADAPTER ASSEMBLY - grease fitting

2шт.

7

J45801

LUBE NIPPLE,M8 x 1.25

track adjustment M8 x 1.25

1шт.

8

NSS

NOT SOLD SEPARAT

ADAPTER - grease fitting, order adapter assembly P3043319

1шт.

9

P1230443

O-RING

SEAL - adapter

1шт.

10

P4540360

BLANK-OFF PLUG

GUARD - idler wheel and adjustment cylinder, if used

2шт.

11

P8846270

SHOCK ABSORBER

SPRING - track shock absorber (Replaces spring P6546271)

2шт.

12

P1642317

TRACK SHOE

SHOE - track, grouser, 500 mm (20 inch) long

102шт.

12

P1642318

TRACK SHOE

SHOE - track, grouser, 600 mm (24 inch) long

102шт.

12

P1842356

TRACK SHOE

SHOE - track, grouser, 700 mm (28 inch) long

102шт.

12

P1842355

TRACK SHOE

SHOE - track, grouser, 850 mm (34 inch) long

102шт.

13

P233006

SCREW

BOLT - special, track shoe

408шт.

14

REF

INSTRUCTION

CHAIN ASSEMBLY - track, parts list Figure 5-18

2шт.

15

P234504

NUT

- special, track shoe

408шт.

16

P1842311

ROLLER, TRACK

ROLLER - carrier, track, see Figure 5-2

6шт.

17

P4620371

CAP

BRACKET - mounting, carrier roller, see Figure 5-6

6шт.

18

REF

INSTRUCTION

ROLLER ASSEMBLY - track, parts list Figure 5-16

18шт.

19

P833815

SCREW

BOLT - hex, 24 mm x 120 mm, track, Serial Range: roller-frame

72шт.

20

P4528704

WASHER

SPACER - track roller bolt, 17 mm thick

72шт.

21

P3337446

PLUG

- adjustment cylinder, not shown

2шт.
