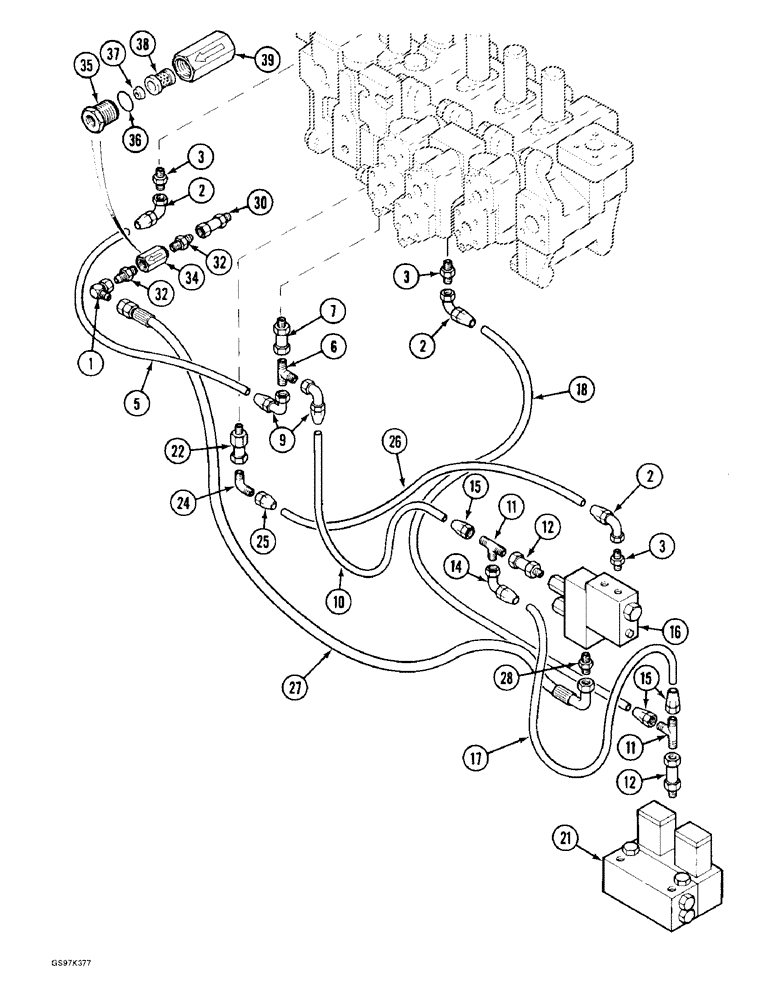

Запчасти Case 170C (8-054) - HYDRAULIC CONTROL CIRCUIT, FOR HEAVY LIFT, P.I.N. 74502 THRU 74662, P.I.N. 02301 AND AFTER (08) - HYDRAULICS

1

P1737019

ANGLE

ELBOW - 90 degree, filter to control circuit hose

1шт.

2

P4037590

END FITTING

ADAPTER - 90 degree, control circuit hose

3шт.

3

P4037573

UNION

ADAPTER ASSEMBLY - straight, at valve, Includes: O-ring P945295

3шт.

P945295

SEAL

O-RING - adapter

1шт.

5

REF

INSTRUCTION

HOSE - control circuit, 400 mm (15-3/4 inch) long, cut from bulk hose P1103640 below

1шт.

6

P937275

TEE

- at heavy lift valve section

1шт.

7

P4037577

FITTING

TUBE ASSEMBLY - adapter, tee to valve section, Includes: O-ring P945295

1шт.

P945295

SEAL

O-RING - adapter

1шт.

9

P4037590

END FITTING

ADAPTER - 90 degree, control circuit hose

2шт.

10

REF

INSTRUCTION

HOSE - control circuit, to parallel supply valve, 700 mm (27-9/16 inch) long, cut from P1103640 below

1шт.

11

P937275

TEE

- at parallel supply and solenoid control valves

2шт.

12

P4037577

FITTING

TUBE ASSEMBLY - adapter, tee to parallel supply and solenoid valves, Includes: O-ring P945295

2шт.

P945295

SEAL

O-RING - adapter

1шт.

14

P4037590

END FITTING

ADAPTER - 90 degree, control circuit hose

1шт.

15

P4037588

END FITTING

ADAPTER - straight, control circuit hose

3шт.

16

P3143306

BLOCK

VALVE ASSEMBLY - control, parallel supply, parts list Figure 8-136

1шт.

17

REF

INSTRUCTION

HOSE - control circuit, to tee at solenoid control valve, 700 mm (27-9/16 inch) long, cut from bulk hose P1103640 below

1шт.

18

REF

INSTRUCTION

HOSE - control circuit, tee at solenoid valve to attachment control valve, 1300 mm (51-1/8 inch) long, cut from bulk hose P1103640 below

1шт.

21

P1843371

SHIN

VALVE ASSEMBLY - solenoid control, parts list Figure 8-132

1шт.

22

P4037577

FITTING

TUBE ASSEMBLY - adapter, at parallel arm section, Includes: O-ring P945295

1шт.

P945295

SEAL

O-RING - adapter

1шт.

24

P1737051

ANGLE

ADAPTER - 90 degree, tube to control circuit hose

1шт.

25

P4037588

END FITTING

ADAPTER - straight, control circuit hose

1шт.

26

REF

INSTRUCTION

HOSE - control circuit, to parallel supply valve, 1000 mm (39-3/8 inch) long, cut from bulk hose P1103640 below

1шт.

27

P6631920

HOSE

- parallel arm section to parallel supply control valve, 800 mm (31-1/2 inch) long

1шт.

28

P4037573

UNION

ADAPTER ASSEMBLY - hose to parallel supply control valve, Includes: O-ring P945295

1шт.

P945295

SEAL

O-RING - adapter

1шт.

30

P4037577

FITTING

TUBE ASSEMBLY - adapter, at parallel arm section, Includes: O-ring P945295

1шт.

P945295

SEAL

O-RING - adapter

1шт.

32

P4037584

UNION

ADAPTER ASSEMBLY - straight, at valve, Includes: O-ring P7046042

2шт.

P7046042

SEAL

O-RING - adapter

1шт.

34

P7646290

ASSEMBLY

FILTER ASSEMBLY - parallel arm section, in line, Includes: Ref. 35-39

1шт.

35

NSS

NOT SOLD SEPARAT

CAP - filter assembly, order filter assembly P7646290

1шт.

36

P1145268

SEAL

O-RING - cap

1шт.

37

NSS

NOT SOLD SEPARAT

CONE - filter assembly, order filter assembly P7646290

1шт.

38

P1950574

CARTRIDGE

ELEMENT - filter assembly

1шт.

39

NSS

NOT SOLD SEPARAT

BODY - filter assembly, order filter assembly P7646290

1шт.

P1103640

PIPE

HOSE - bulk, sold by the meter

1шт.
