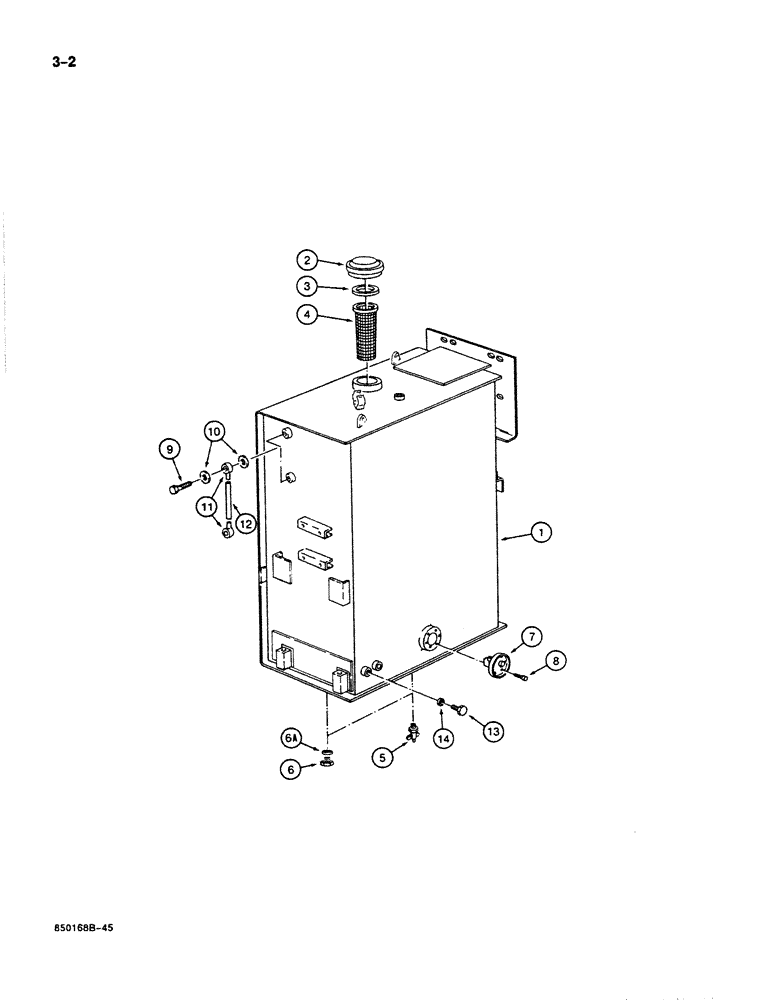

Запчасти Case 125B (3-2) - FUEL TANK, P.I.N. 74251 THRU 74963, 21801 THRU 21868, 26801 AND AFTER (03) - FUEL SYSTEM

1

P1240287

FUEL TANK

TANK - fuel, excavator

1шт.

P43262

PLUG

CAP ASSEMBLY - fuel tank, units with P.I.N., cylinder and key are not available for this cap and are not interchangeable with Refs. 3A and 3B. If replacement cylinder or key are required, order P3237496 cap assembly 74251 to 74902 & 74904

1шт.

P3237496

FILLER CAP

CAP ASSEMBLY - fuel tank, Include: Ref. 2 - 3B 74903 & 74 to, Serial Range: 74-74963

1шт.

P3237496

FILLER CAP

CAP ASSEMBLY - fuel tank, Include: Ref. 2 - 3B 21801 to 21868 & 26801

1шт.

2

NSS

NOT SOLD SEPARAT

CAP - fuel tank

1шт.

3

P8846020

SEAL

GASKET - fuel cap (replaces P46096)

1шт.

3a

P152083

LOCK, CYLINDER

CYLINDER ASSEMBLY - lock, not shown

1шт.

3b

P1352009

KEY

- lock, not shown

1шт.

4

P50537

FILTER BOWL

STRAINER - fuel

1шт.

5

P837827

COCK

VALVE - tank drain, if used

2шт.

6

P37495

PLUG

- tank drain, if used

2шт.

6a

P146001

WASHER, SEALING

SEAL - tank drain plug, if used

2шт.

7

P2141665

GAUGE

SENDING UNIT - low fuel warning light

1шт.

8

P32530

SCREW

- sending unit mounting

6шт.

9

P730090

BANJO BOLT

BOLT - fuel tank connector

2шт.

10

P5346094

SEAL

GASKET - connector bolt

4шт.

11

P1337053

FITTING

CONNECTOR - tank, fuel sight gauge

2шт.

12

REF

INSTRUCTION

HOSE - fuel sight gauge, 10" (254 mm) long, cut from P3683

1шт.

13

P1037496

PLUG

- tank side

1шт.

14

P28430

COMPOSITE SEAL

SEAL - plug

1шт.
