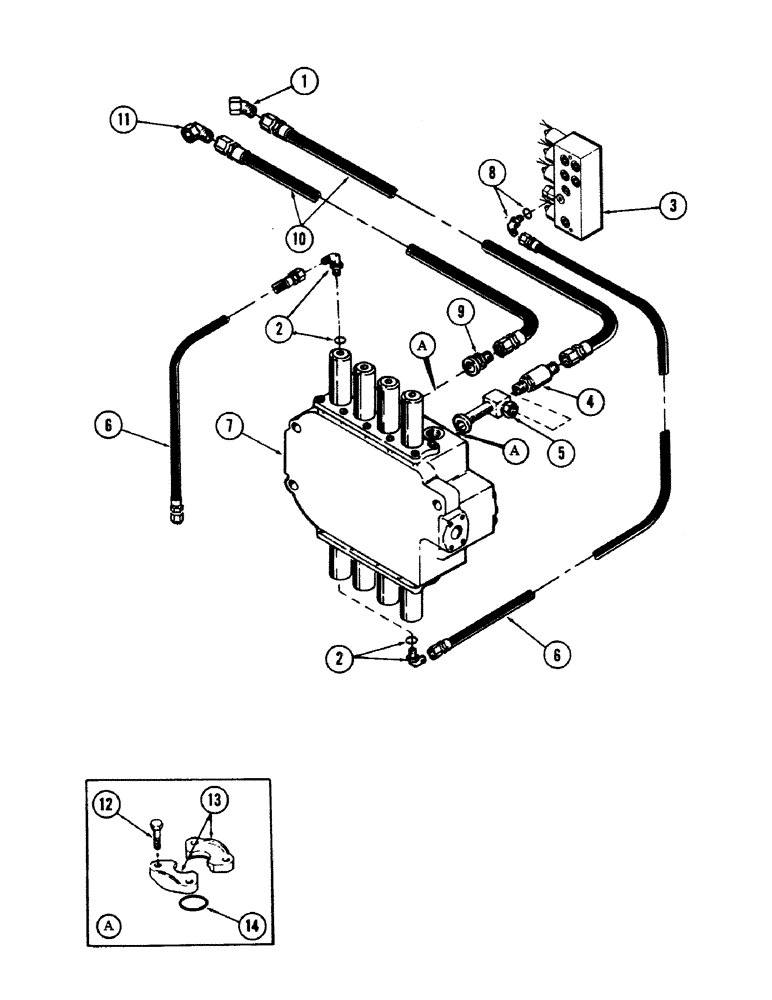

Запчасти Case 50 (8-192) - FAST HOIST TUBING (08) - HYDRAULICS

1

218-5176

ELBOW,45 Degree Elbow, 1-5/16" - 12 Male JIC x 1-5/16" - 12 Female JIC

- 45 degree swivel, 1" tube x 1-5/16" - 12

1шт.

2

218-5105

ELBOW,90 Degree Elbow, 9/16" - 18 Male JIC x 9/16" - 18 Male ORB

- 90 degree adjustable, 3/8" tube x 9/16" - 18

2шт.

218-5005

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

6-1, 90 Duro, .468" ID x .078" Thk

2шт.

3

REF

INSTRUCTION

VALVE - solenoid monoblock (See Figure 8-166)

1шт.

4

S93154

VALVE

- check

1шт.

5

S236457

TUBE,1" OD x 5.06" L

- hydraulic

1шт.

6

S227396

HOSE ASSY.

HOSE - high pressure, 3/8" (9.5 M) ID x 50" (1270 MM) long

2шт.

7

REF

INSTRUCTION

VALVE - 4-spool main control (Inside) (See Figure 8-168)

1шт.

8

218-5135

ELBOW,45 Degree Elbow, 9/16" - 18 Male JIC x 9/16" - 18 Male ORB

- 45 degree adjustable, 3/8" tube x 9/16" - 18

1шт.

218-5005

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

6-1, 90 Duro, .468" ID x .078" Thk

1шт.

9

S232093

FITTING

TUBE - hydraulic

1шт.

10

S8628

HOSE

- high pressure, 1" (25.4 MM) ID x 36" (914.4 MM) long

2шт.

11

218-5234

ELBOW,90 Degree, 1 5/16"-12, 37 Degree x 1 5/16"-12, 37 Degree Fem Sw

- 90 degree swivel, 1" tube x 1-5/16" - 12

1шт.

12

113-208

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5

8шт.

13

A12306

FLANGE

CLAMP - half flange

4шт.

14

S6583

O-RING,0.139" Thk x 1.296" ID, -219, Cl 6, 90 Duro

- 1.296" ID x 1.574" OD

2шт.
