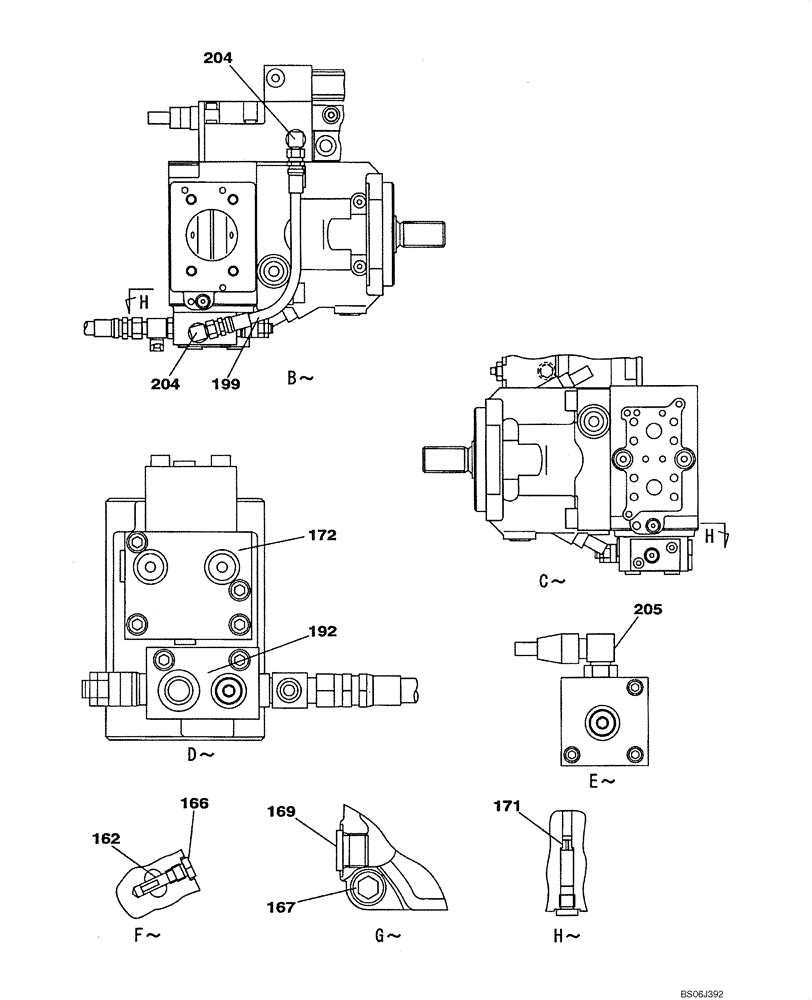

Запчасти Case CX130 (08-123) - KNJ3000 PUMP ASSY, HYDRAULIC (08) - HYDRAULICS

KNJ3000

PUMP, HYDRAULIC

Includes All Parts On Figures 08-122 - 08-131

1шт.

87341952

REMAN-HYD PUMP

Remanufactured, HYDRAULIC PUMP

1шт.

87341953

CORE-HYDRAULIC PUMP

Return Number

1шт.

162

LA00714

SPECIAL PIN

8шт.

166

LK00309

PLUG

8шт.

167

863-16060

HEX SOC SCREW,M16 x 60mm, Cl 12.9

8шт.

169

LK00118

PLUG

6шт.

171

164915A1

ORIFICE

2шт.

172

LJ00765

VALVE

See Figure 08-124

1шт.

192

LJ00906

VALVE, PRESSURE RELI

EF See Figure 08-124

1шт.

199

LK00311

HYDRAULIC HOSE

1шт.

204

LLP0106

ELBOW

2шт.

205

LK00315

ELBOW

1шт.
