(08-016A) - HYDRAULICS - DRAIN LINE - MODELS WITHOUT LOAD HOLD (DAC0713436 - )

Запчасти Case CX130 (08-016A) - HYDRAULICS - DRAIN LINE - MODELS WITHOUT LOAD HOLD (DAC0713436 - ) (08) - HYDRAULICS

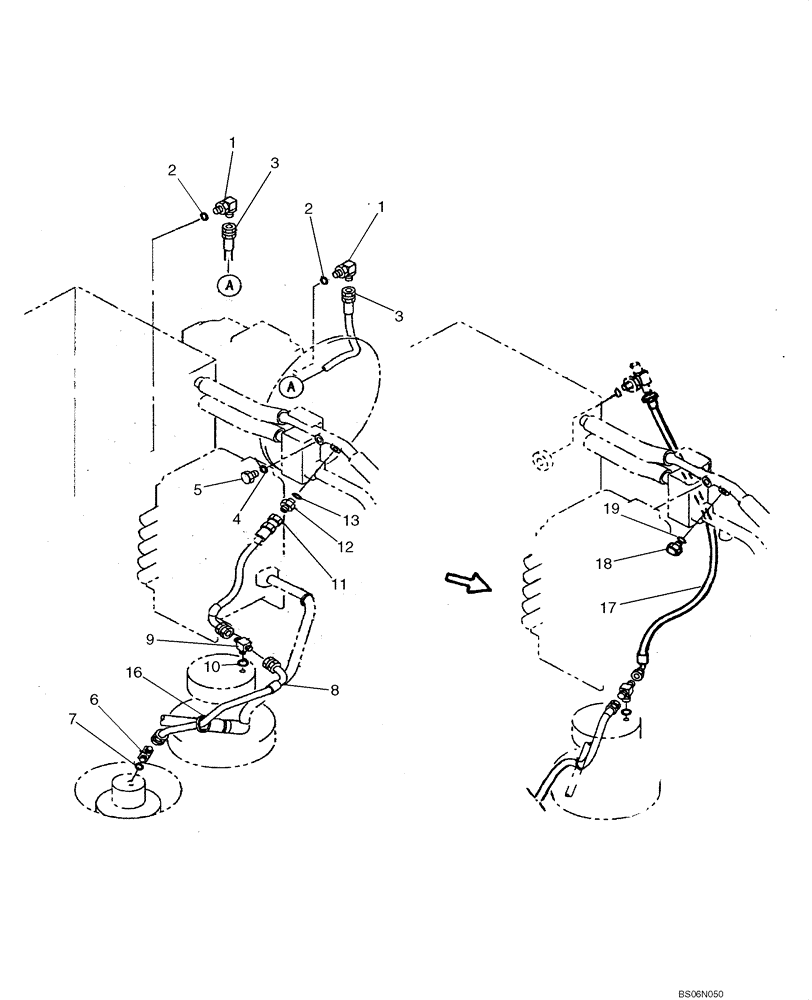

Схема запчастей Case CX130 - (08-016A) - HYDRAULICS - DRAIN LINE - MODELS WITHOUT LOAD HOLD (DAC0713436 - ) (08) - HYDRAULICS
9
2
12
11
4
5
7
3
19
10
17
13
6
16
18
1
2
1
3
8
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

Models Without Load Hold

1шт.

1

150919A1

ELBOW,90 Degree, 1/2" O-Ring x 1/2"

Incl. 2

2шт.

2

154487A1

O-RING

1шт.

3

KNJ3065

HOSE,12.70 mm ID x 1150.00 mm

1шт.

4

162557A1

PLUG

Incl. 5

1шт.

5

154475A1

O-RING

1шт.

6

150919A1

ELBOW,90 Degree, 1/2" O-Ring x 1/2"

Incl. 7

1шт.

7

154487A1

O-RING

1шт.

8

163805A1

HOSE ASSY.

1шт.

9

KHJ1157

TEE

Incl. 10

1шт.

10

154475A1

O-RING

1шт.

11

KNJ2767

HYDRAULIC HOSE,520.00 mm

P.I.N. DAC071346 - DAC131772

1шт.

12

151650A1

HYD CONNECTOR,1/2" NPT O-Ring x 1/2" NPT

Incl. 13; P.I.N. DAC071346 - DAC131772

1шт.

13

154487A1

O-RING

1шт.

14

KHR2583

CLAMP

P.I.N. DAC071346 - DAC131772; Not Illustrated

1шт.

15

159906A1

BOLT,Sems, Hex, M6 x 20mm, Spcl

P.I.N. DAC071346 - DAC131772; Not Illustrated

1шт.

16

150071A1

MOUNTING CLIP

1шт.

17

KNJ11920

HOSE ASSY.,12.70 mm ID x 1650.00 mm

P.I.N. DAC131773 -

1шт.

18

159085A1

PLUG

Incl. 19; P.I.N. DAC131773 -

1шт.

19

154487A1

O-RING

1шт.
