(08-025) - HYDRAULICS - BOOM CYLINDER

Запчасти Case CX130 (08-025) - HYDRAULICS - BOOM CYLINDER (08) - HYDRAULICS

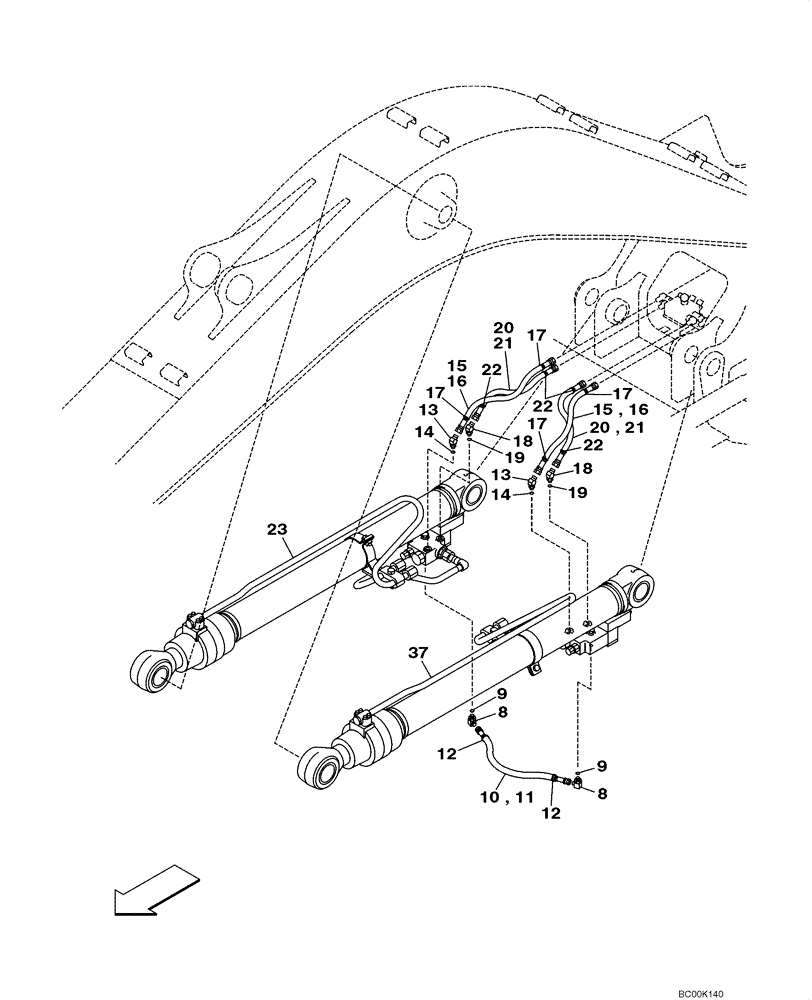

Схема запчастей Case CX130 - (08-025) - HYDRAULICS - BOOM CYLINDER (08) - HYDRAULICS
12
19
20
13
18
8
9
22
9
22
23
22
17
11
17
15
15
16
20
12
13
8
17
19
10
21
17
37
16
14
18
14
21
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

Models With Load Hold

1шт.

8

158784A1

ELBOW

Incl. 9

2шт.

9

154467A1

O-RING,10.8mm ID x 2.4mm Width

1шт.

10

163445A1

HYDRAULIC HOSE,6.30 mm ID x 550.00 mm

1шт.

11

150770A1

PLASTIC-RUBBER TUBE

1шт.

12

150067A1

MOUNTING CLIP

150 mm (6 in)

2шт.

13

161087A1

ELBOW

Incl. 14

2шт.

14

154467A1

O-RING,10.8mm ID x 2.4mm Width

1шт.

15

KHJ1307

HYDRAULIC HOSE,19.05 mm ID x 600.00 mm

2шт.

16

157767A1

PLASTIC-RUBBER TUBE

2шт.

17

150067A1

MOUNTING CLIP

150 mm (6 in)

4шт.

18

161087A1

ELBOW

2шт.

19

154467A1

O-RING,10.8mm ID x 2.4mm Width

Incl. 20

1шт.

20

166162A1

HYDRAULIC HOSE,9.50 mm ID x 500.00 mm

2шт.

21

157766A1

PLASTIC-RUBBER TUBE,15 mm ID, 19.5 mm OD, 500 mm Length

2шт.

22

150067A1

MOUNTING CLIP

150 mm (6 in)

4шт.

23

KNV1619

HYDRAULIC CYLINDER

Right Hand, See Figure 8-104, For Mounting, See Figure 09-41

1шт.

37

KNV1620

HYDRAULIC CYLINDER

Left Hand, See Figure 08-105, For Mounting, See Figure 09-41

1шт.
