(09-21) - CONSOLE, CONTROL - OPERATORS COMPARTMENT

Запчасти Case CX135SR (09-21) - CONSOLE, CONTROL - OPERATORS COMPARTMENT (09) - CHASSIS/ATTACHMENTS

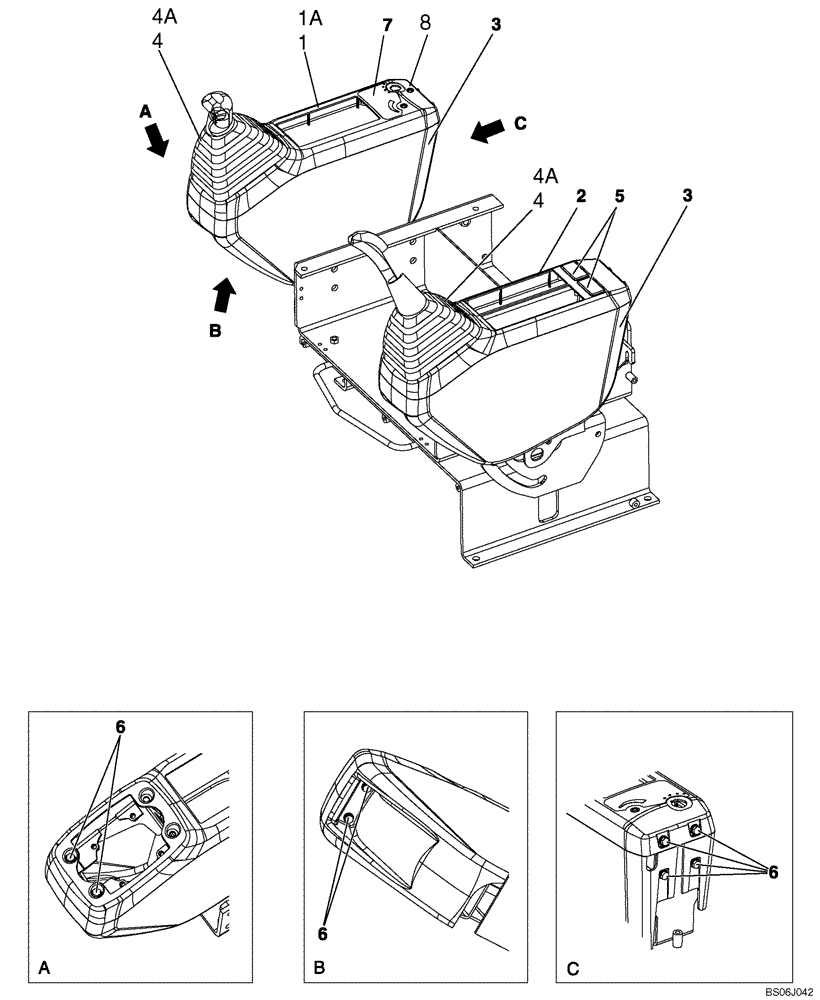

Схема запчастей Case CX135SR - (09-21) - CONSOLE, CONTROL - OPERATORS COMPARTMENT (09) - CHASSIS/ATTACHMENTS
4a
6
1a
6
7
5
2
6
3
1
4
4
3
4a
8
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

KHN2883

COVER

Right; No Longer Available, For Service Order KHN3523 Cover And KHN3524 Plug, Ref 1A And 8

1шт.

1a

KHN3523

COVER

Right

1шт.

2

KHN2884

COVER

Left Hand

1шт.

3

KHN2885

COVER

2шт.

4

KHN2501

BOOT

2шт.

4a

KHN3585

BELLOWS

Granite Black; If Used

2шт.

5

KHR2913

CAP

1шт.

6

KHN2132

BOLT,Hex Flg Hd, M6 x 16

16шт.

7

KHN3526

DECAL

Replaces KHN3018

1шт.

8

KHN3524

PLUG

1шт.
