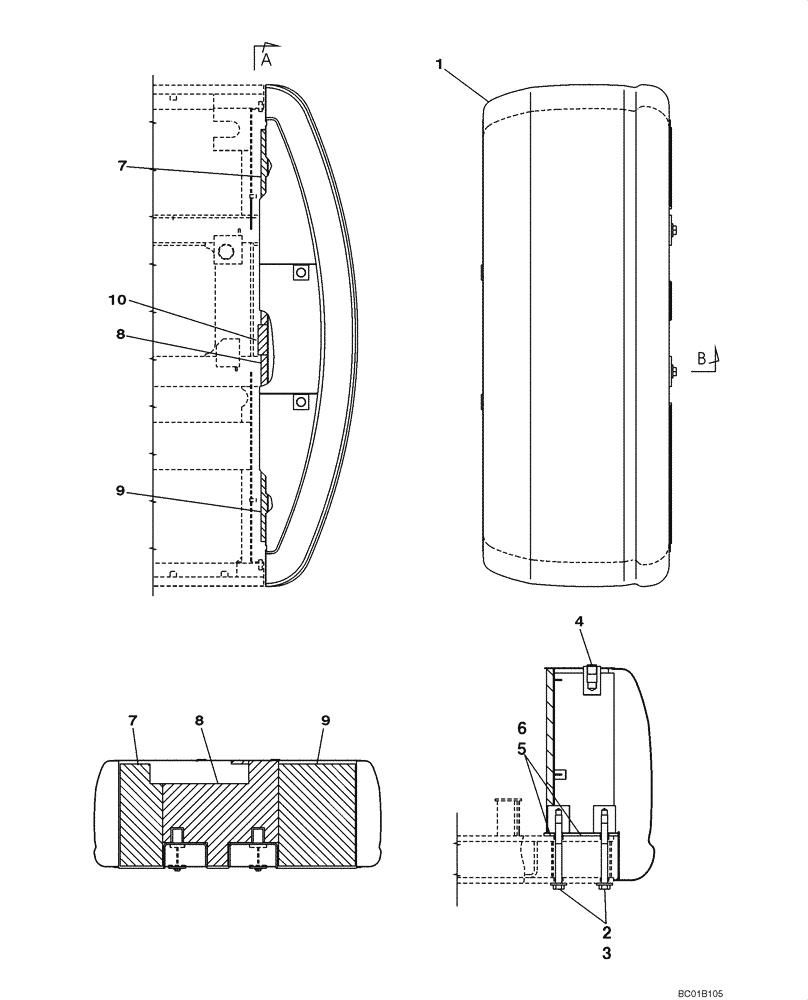

Запчасти Case CX160 (09-04) - COUNTERWEIGHT - SOUNDPROOFING (09) - CHASSIS/ATTACHMENTS

1

KLB0219Y2

WEIGHT PACKAGE

Replaces KLB0198Y2 And KLB0198

1шт.

2

169173A1

BOLT,M27 x 270mm

4шт.

1

Counterweight Lifting Eye Not Serviced - Thread size M36 pitch 4.0mm - length 59mm

1шт.

3

163857A1

WASHER

4шт.

4

150129A1

PLUG

2шт.

5

158933A1

SHIM

0,80 mm (0,032 in)

1шт.

6

158934A1

SHIM

1,20 mm (0,047 in)

1шт.

7

KLB0173

INSULATOR

Acoustical

1шт.

8

KLB0174

INSULATOR

Acoustical

1шт.

9

KLB0175

INSULATOR

Acoustical

1шт.

10

KLB0193

NOISE PROTECTION

1шт.
