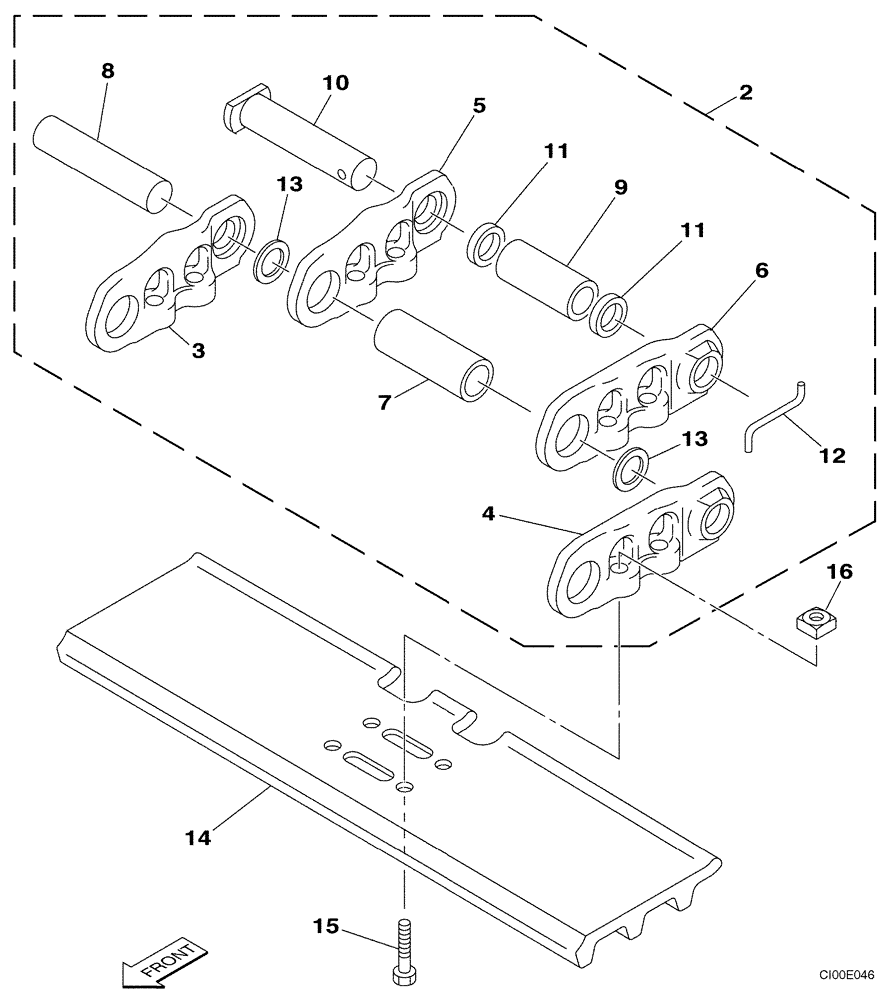

Запчасти Case CX160 (05-06) - TRACK CHAINS, 700 MM (27-5/8 IN) (P.I.N. DAC0716098 - DAC0716519) (11) - TRACKS/STEERING

2

168273A1

CHAIN (CE)

Track, Incl. 3 - 13, Production Only, Service With Aftermarket Track Chain Assembly KLP0160PECA

2шт.

KLP0160PECA

LINK

Aftermarket Track Assembly

2шт.

3

159670A1

LINK

Track, Right Hand

42шт.

4

159671A1

LINK

Track, Left Hand

42шт.

5

168654A1

LINK

Master, Right Hand

1шт.

6

168655A1

LINK

Master, Left Hand

1шт.

7

168651A1

BUSHING

42шт.

8

159672A1

PIN

42шт.

9

168652A1

BUSHING

1шт.

10

159676A1

HEADED PIN,36.3mm OD x 208mm L

Master

1шт.

11

159673A1

SPACER, RING

2шт.

12

159677A1

COTTER PIN,8mm OD

1шт.

13

168653A1

SEAL,39.8mm ID x 60.3mm OD x 5.6mm Thk

86шт.

14

159416A1

TRACK SHOE

700 mm

86шт.

15

159668A1

BOLT,Hex, M20 x 1.5 x 53mm

Shoe

344шт.

16

151767A1

NUT

Used With 168273A1 Chain Assy

344шт.

KLP0161PECA

NUT

Aftermarket, Used With KLP0160PECA Aftermarket Track Assy

344шт.
