(05-07) - TRACK CHAINS, 700 MM (27-5/8 IN) (P.I.N. DAC0716520 - )

Запчасти Case CX160 (05-07) - TRACK CHAINS, 700 MM (27-5/8 IN) (P.I.N. DAC0716520 - ) (11) - TRACKS/STEERING

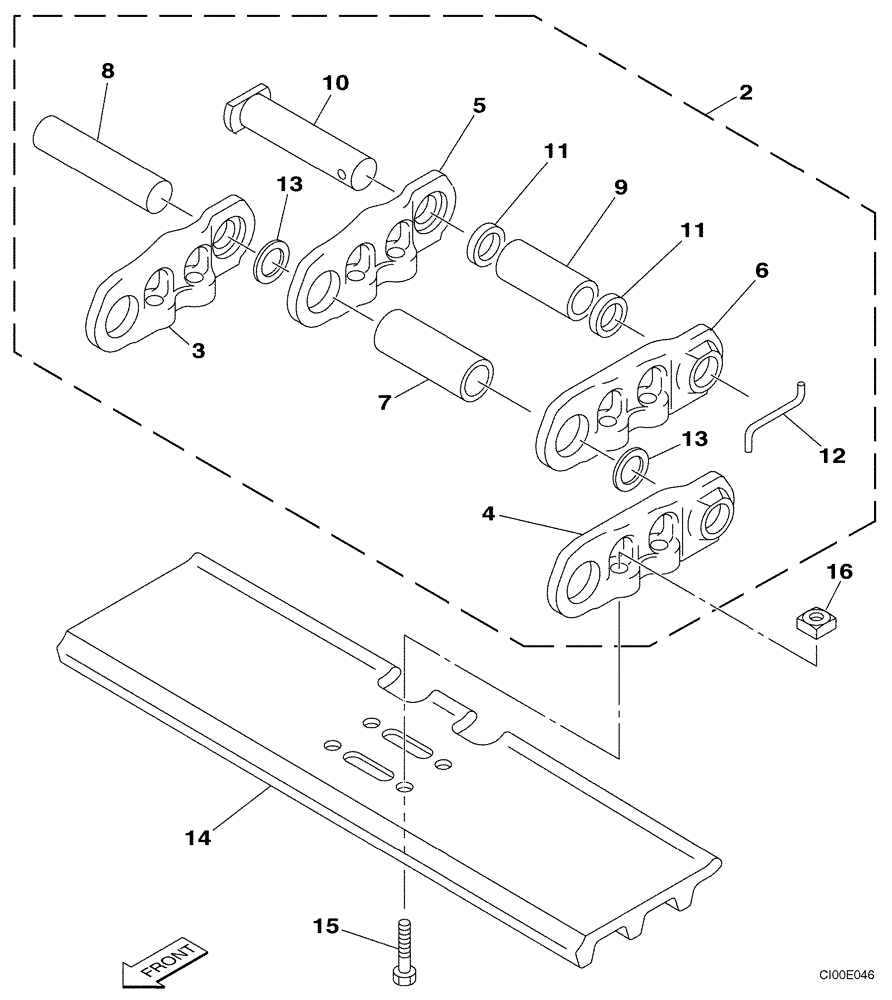

Схема запчастей Case CX160 - (05-07) - TRACK CHAINS, 700 MM (27-5/8 IN) (P.I.N. DAC0716520 - ) (11) - TRACKS/STEERING
7
16
12
14
2
6
8
9
3
4
15
11
13
5
11
13
10
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

2

KLA0179

CHAIN (CE)

Track, Incl. 3 - 13, Production Only, Service With Aftermarket Track Chain Assembly KLP0160PECA

2шт.

KLP0160PECA

LINK

Aftermarket Track Assembly

2шт.

3

KRA1807

LINK

Track, Right Hand

42шт.

4

KRA1808

LINK

Track, Left Hand

42шт.

5

KRA1809

LINK

Master, Right Hand

1шт.

6

KRA1810

LINK CHAIN

Master, Left Hand

1шт.

7

KRA1811

BUSHING

42шт.

8

KRA11110

PIN

Replaces KRA1567

42шт.

9

KRA1569

BUSHING

1шт.

10

159676A1

HEADED PIN,36.3mm OD x 208mm L

Master

1шт.

11

159673A1

SPACER, RING

2шт.

12

159677A1

COTTER PIN,8mm OD

1шт.

13

KRA1814

DUST CAP

86шт.

14

159416A1

TRACK SHOE

700 mm

86шт.

15

159668A1

BOLT,Hex, M20 x 1.5 x 53mm

Shoe

344шт.

16

151767A1

NUT

Used With KLA0179 Chain Assy

344шт.

KLP0161PECA

NUT

Aftermarket, Used With KLP0160PECA Aftermarket Track Assy

344шт.
