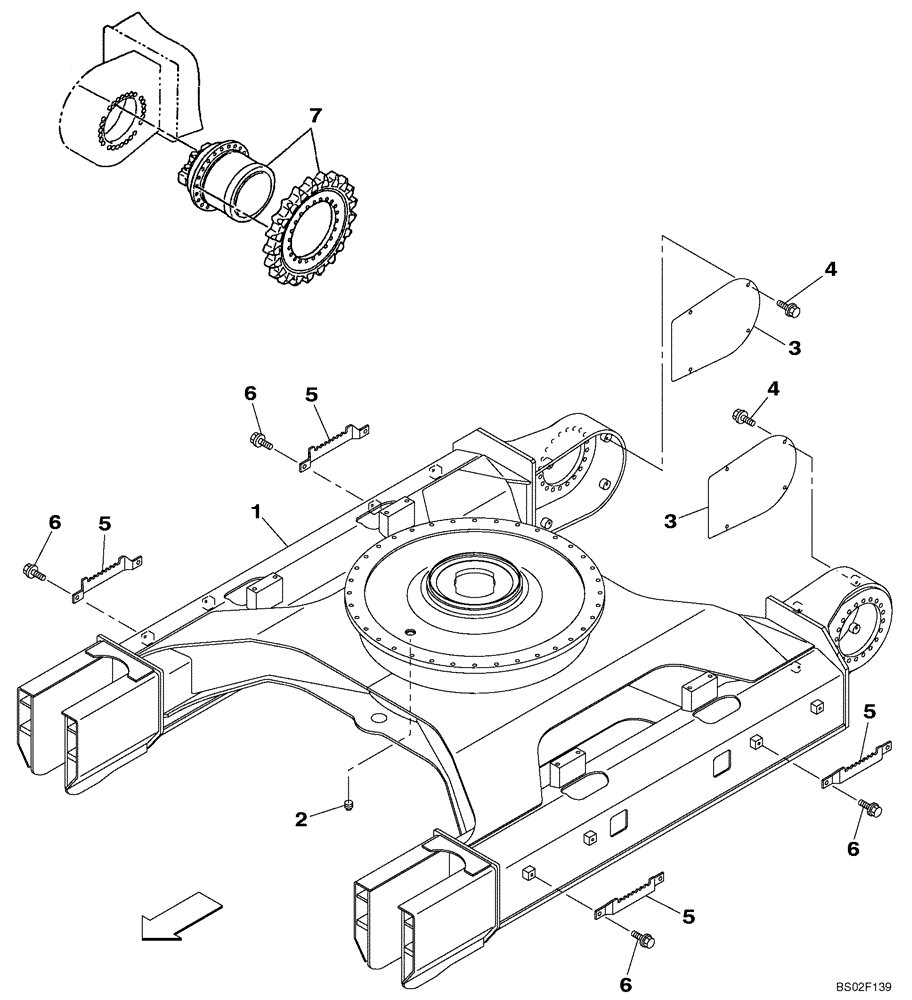

Запчасти Case CX210N (05-01) - UNDERCARRIAGE (Dec 8 2009 8:48AM) (11) - TRACKS/STEERING

1

KRA1669

CHASSIS

Undercarriage

1шт.

2

157221A1

PLUG

1шт.

3

KRA1553

COVER

Motor

2шт.

4

158919A1

CAPTIVE WASHER SCREW,Hex Wshr Hd, M12 x 1.75 x 35mm, Cl 10.9, Spcl

8шт.

5

KSA1143

STEP

4шт.

6

105R020Y050R

BOLT

8шт.

7

KRA1426

MOTO-REDUCTION GEAR

Travel; See Figures 06-02, 06-03, 06-04; No Longer Available, For Servcie Order KRA10120

2шт.

7

KRA1860

MOTO-REDUCTION GEAR

Travel; See Figures 06-02, 06-03, 06-04; No Longer Available, For Service Order KRA10120

2шт.

7

KRA10120

MOTO-REDUCTION GEAR

Travel; See Figures 06-02A, 06-03A, 06-04A

2шт.
