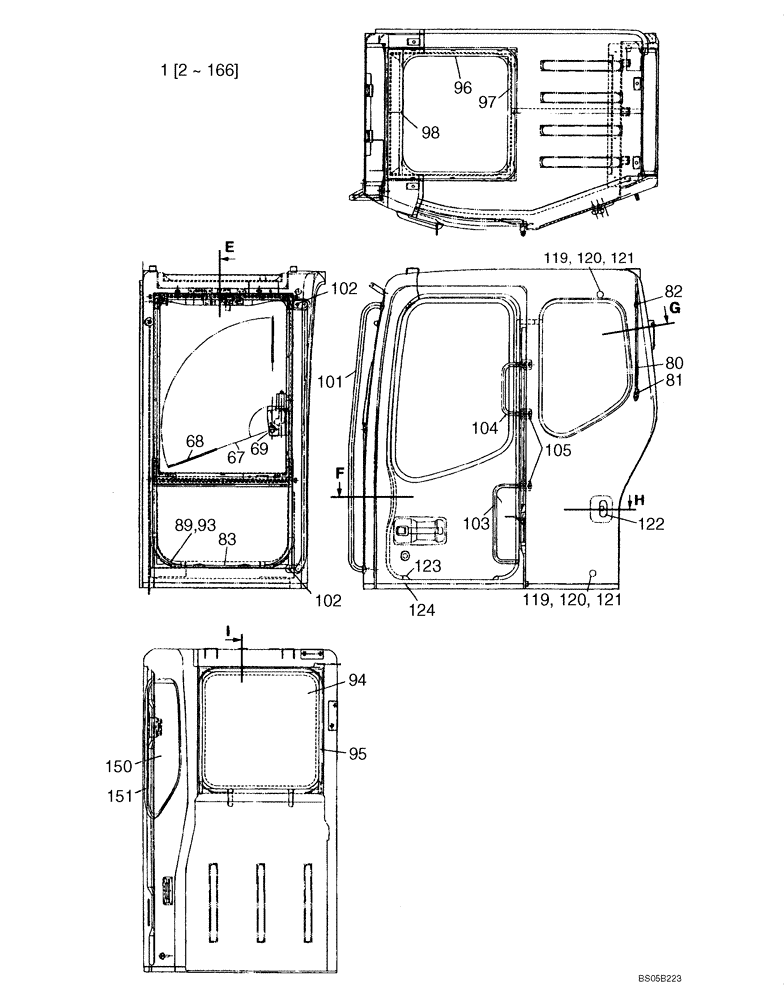

Запчасти Case CX225SR (09-23) - CAB (09) - CHASSIS

1

KHN3261

CAB

Includes Figures 09-23 - 09-27, Serial Range: DAC0825101-DAC0825140

1шт.

1

KHN3261

CAB

Includes Figures 09-23 - 09-27, Serial Range: DAC251141-DAC251386

1шт.

67

KHN3040

WIPER ARM

1шт.

68

KHN3041

WIPER BLADE

1шт.

69

KAN2608

NUT

1шт.

80

KHN3043

ANTENNA

1шт.

81

KHN3044

SCREW,Spcl

1шт.

82

KHN3045

SCREW,Spcl

1шт.

83

KHN3046

GLASS

1шт.

89

KHN3052

RUBBER SEAL

1шт.

93

KHN3056

RUBBER SEAL

1шт.

94

KHN3057

GLASS

Rear (kickout) Window

1шт.

95

KHN3058

SEAL, GLASS

1шт.

96

KHN3059

GLASS

Plastic Roof (curved)

1шт.

97

KHN3060

SEAL

1шт.

98

KAN2662

SPACER

12шт.

101

KHN3063

GRAB RAIL

1шт.

102

KHN3064

BOLT,Spcl

2шт.

103

KHN3065

HANDLE

1шт.

104

KHN3066

HANDLE

1шт.

105

KHN3067

SCREW,Spcl

8шт.

119

KAN2751

STOP

2шт.

120

KAN2636

NUT

2шт.

121

KAN2778

WASHER

2шт.

122

KAN2753

GROMMET

1шт.

123

KHN3077

RUBBER SEAL

1шт.

124

KAN2760

CLIP

2шт.

150

KHN3086

GLASS

1шт.

151

KHN3087

RUBBER SEAL

1шт.
