(09-22) - AIR CONDITIONING SYSTEM - CONDENSER

Запчасти Case CX225SR (09-22) - AIR CONDITIONING SYSTEM - CONDENSER (09) - CHASSIS/ATTACHMENTS

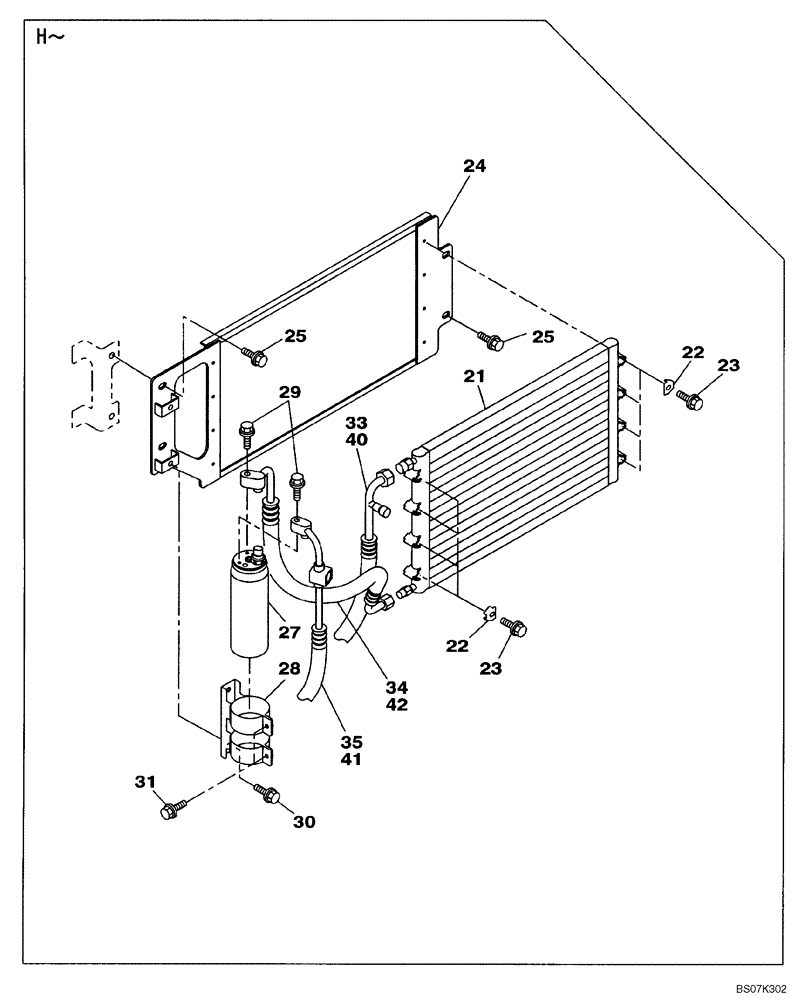

Схема запчастей Case CX225SR - (09-22) - AIR CONDITIONING SYSTEM - CONDENSER (09) - CHASSIS/ATTACHMENTS
28
42
22
25
40
24
35
23
31
29
41
23
22
21
27
33
34
25
30
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

21

KHR2592

CONDENSER

1шт.

22

KHR2593

BRACKET

8шт.

23

162060A1

BOLT

BOLT M6X5M

8шт.

24

KRR14010

BRACKET

BRACKET

1шт.

25

166052A1

BOLT

M10X25

4шт.

27

KHR3751

RECEIVER-DRYER

(includes high/low press switch)

1шт.

28

159635A1

SUPPORT

1шт.

29

162043A1

BOLT,Spcl, M6

M6X28

2шт.

30

166350A1

BOLT

M8X20

2шт.

31

159906A1

BOLT,Sems, Hex, M6 x 20mm, Spcl

M6X20

2шт.

33

KHR16930

HOSE

HOSE, COOLER

1шт.

34

KHR19870

HOSE

HOSE, COOLER

1шт.

35

KHR3961

HOSE

1шт.

40

KHR11730

FLEXIBLE SHEATH

1шт.

41

151736A1

PLASTIC-RUBBER TUBE

1шт.

42

KRH1517

PLASTIC-RUBBER TUBE

1шт.
