(09-31) - SEAT

Запчасти Case CX225SR (09-31) - SEAT (09) - CHASSIS/ATTACHMENTS

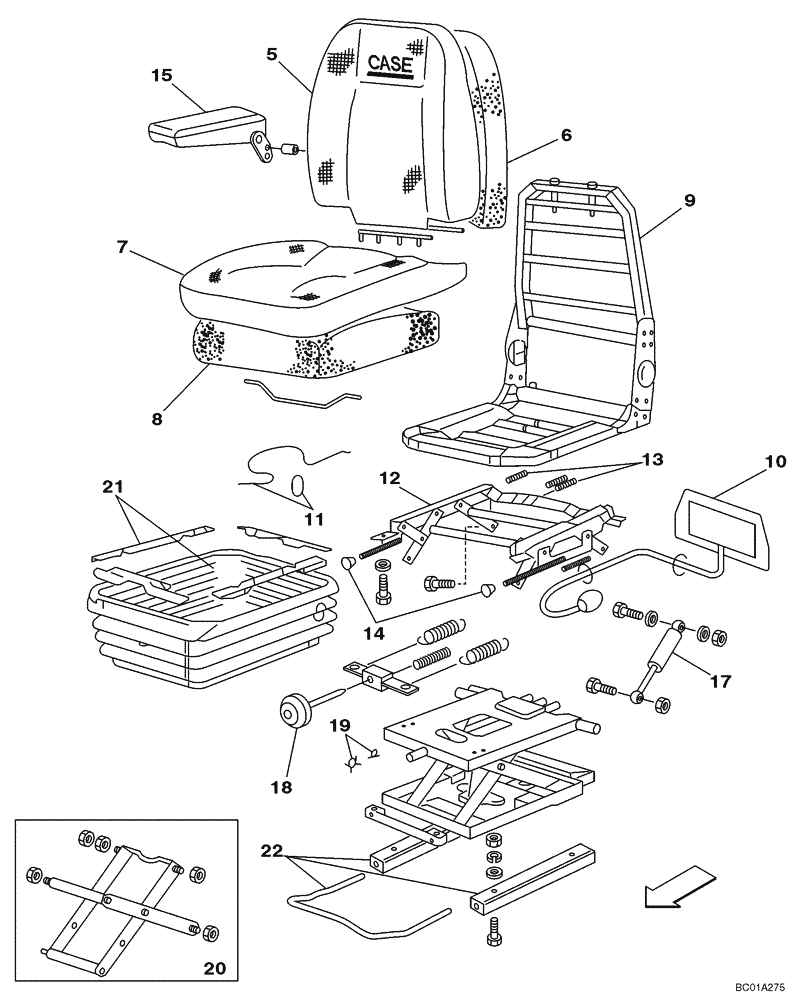

Схема запчастей Case CX225SR - (09-31) - SEAT (09) - CHASSIS/ATTACHMENTS
11
13
10
22
14
7
20
5
8
12
19
9
21
15
17
6
18
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

NSS

NOT SOLD SEPARAT

SEAT ASSY. Incl. 5 - 22; Also Includes Ref 2, 12, Figure 09-32

1шт.

NSS

NOT SOLD SEPARAT

SEAT ASSY. Incl. 5 - 14

1шт.

5

87350972

SEAT COVER

Backrest

1шт.

6

H4841461

FOAM

SEAT BACK

1шт.

7

87350973

SEAT COVER

BOTTOM

1шт.

8

J4841462

FOAM

SEAT COUSHION

1шт.

9

307043A1

FRAMEWORK

1шт.

10

307044A1

KIT

Backrest Adjustment

1шт.

11

D2447088

CABLE

KIT, Recliner Control

1шт.

KHN2200

FRAME

Incl. 12 - 14

1шт.

12

NSS

NOT SOLD SEPARAT

Frame

1шт.

13

KHN2201

SPRING KIT

1шт.

14

KHN2202

BUTTON

Height Adjustment

1шт.

15

KHN3250

ARMREST

Kit Includes Left and Right Hand Armrest with Hardware

1шт.

KHN2189

SUSPENSION Incl. 16 - 20

1шт.

16

NSS

NOT SOLD SEPARAT

Suspension

1шт.

17

KHN2204

GAS STRUT

1шт.

18

KHN2205

HANDLE

Weight Adjustment

1шт.

19

KHN2206

STOP

1шт.

20

KHN2207

SPRING SEAT Height Adjustment

1шт.

21

KHN2190

BELLOWS

1шт.

22

KHN2191

SLIDE GUIDE

1шт.
