(06-001-00[01]) - TRAVEL MOTOR AND REDUCTION GEAR

Запчасти Case CX330 (06-001-00[01]) - TRAVEL MOTOR AND REDUCTION GEAR (06) - POWER TRAIN

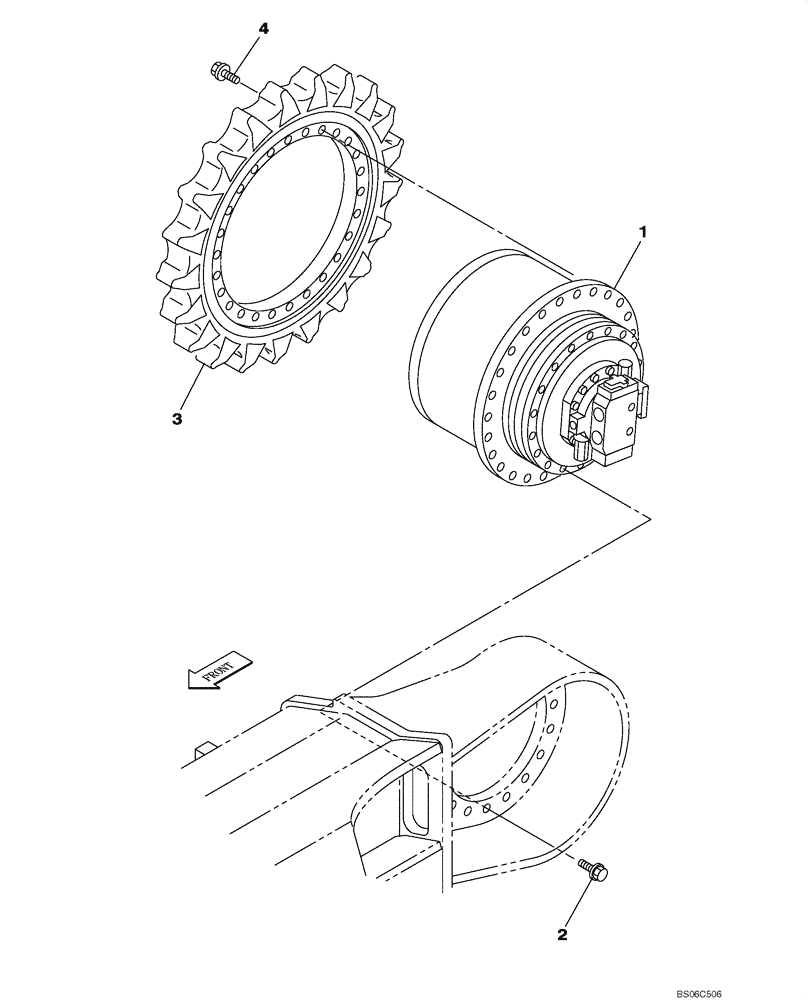

Схема запчастей Case CX330 - (06-001-00[01]) - TRAVEL MOTOR AND REDUCTION GEAR (06) - POWER TRAIN
2
4
3
1
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

KSA10220

MOTO-REDUCTION GEAR

See Figures 06-002-00 01 - 06-004-00 01

2шт.

1

LJ018710R

REMAN-HYD MOTOR

Motor Only. Reducer PN LN002190 And Spool PN LJ018600 Must Also Be Ordered When Replacing KSA10220

2шт.

1

LJ018710C

CORE-MOTOR HYDRAULIC

Return Number

2шт.

2

105R024Y070R

BOLT

36шт.

3

KSA1061

SPROCKET

2шт.

4

166353A1

BOLT,Flng, M20 x 65mm, Cl 10.9

M20 x 65; 10.9

52шт.
