(02-003-00[01]) - ENGINE MOUNTING - ENGINE

Запчасти Case CX350 (02-003-00[01]) - ENGINE MOUNTING - ENGINE (03) - FUEL SYSTEM

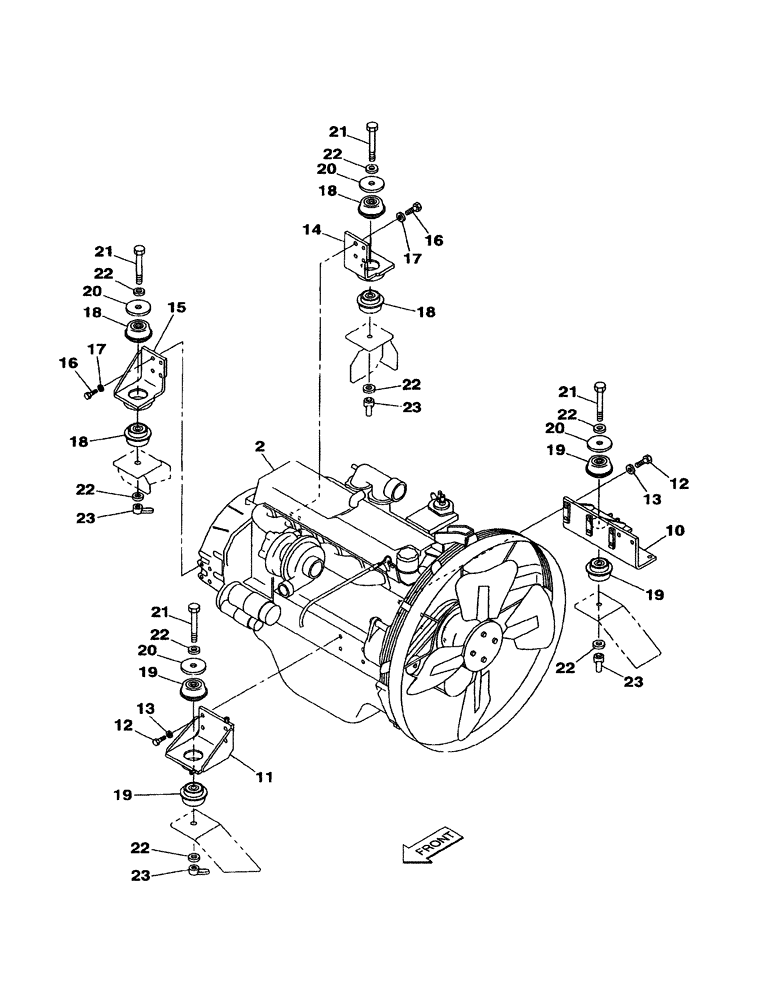

Схема запчастей Case CX350 - (02-003-00[01]) - ENGINE MOUNTING - ENGINE (03) - FUEL SYSTEM
20
21
23
19
22
22
13
12
17
22
19
20
21
13
12
20
18
23
14
17
10
20
21
16
18
22
18
18
15
22
22
16
21
19
2
22
23
22
11
19
23
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

2

KSH0947

ENGINE ASSEMBLY

ENGINE ASSY

1шт.

Serial Number : CX330 DCH33B0101 To DCH33B0241 / CX350 DCH33B0101 To DCH33B0241

1шт.

See Page(s) 02-017-00-01 To 02-055-00-01, 03-011-00-01 To 03-033-00-01, 04-039-00-01

1шт.

2

KSH1013

ENGINE ASSEMBLY

ENGINE ASSY

1шт.

Serial Number : CX330 DCH33B0242 And After / CX350 DCH33B0242 And After

1шт.

See Page(s) 02-017-0001 To 02-055-00-01, 03-011-00-02,0 04-039-00-01

1шт.

10

KSH0907

ENGINE MOUNT

1шт.

11

KSH0908

ENGINE MOUNT

1шт.

12

627-10035

BOLT,Hex, M10 x 1.5 x 35mm, Cl 10.9, Full Thd

10шт.

13

150409A1

WASHER

10,5 x 21 x 3,2 mm

10шт.

14

KSH0909

ENGINE MOUNT

1шт.

15

KSH0910

ENGINE MOUNT

1шт.

16

627-12040

BOLT,Hex, M12 x 1.75 x 40mm, Cl 10.9, Full Thd

8шт.

17

150811A1

WASHER

M12

8шт.

18

KSH0891

SILENTBLOC

4шт.

19

KSH0892

SILENTBLOC

4шт.

20

150874A1

WASHER

4шт.

21

827-20150

BOLT,Hex, M20 x 2.5 x 150mm, Cl 10.9

4шт.

22

150817A1

WASHER,21mm ID x 40mm OD x 4.5mm Thk

8шт.

23

KSH0923

SPECIAL NUT

4шт.
