(08-163-07[01]) - HIGH PRESSURE HYDRAULIC PUMP - SOLENOID VALVE - STANDARD - KAWASAKI

Запчасти Case CX350 (08-163-07[01]) - HIGH PRESSURE HYDRAULIC PUMP - SOLENOID VALVE - STANDARD - KAWASAKI (08) - HYDRAULICS

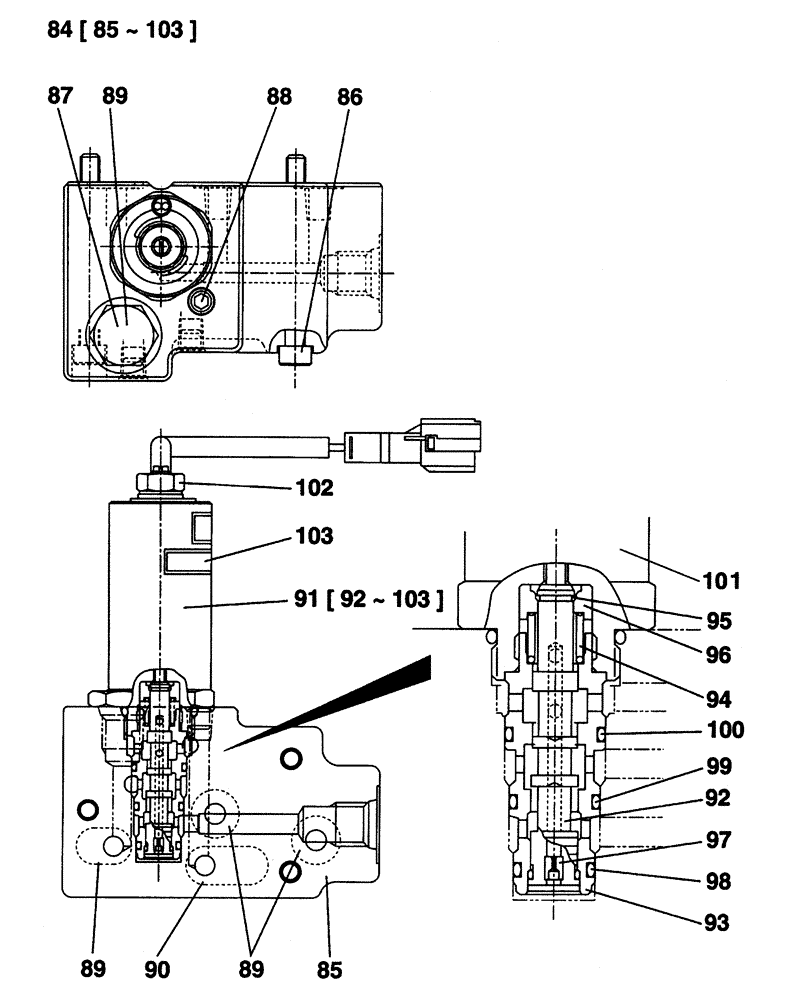

Схема запчастей Case CX350 - (08-163-07[01]) - HIGH PRESSURE HYDRAULIC PUMP - SOLENOID VALVE - STANDARD - KAWASAKI (08) - HYDRAULICS
103
101
92
89
103
85
103
96
99
94
90
95
92
86
102
100
89
93
89
88
98
97
87
84
85
91
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

KSJ2851

PUMP, HYDRAULIC

1шт.

Consists Of Ref. Numbers 84 To 103

1шт.

KSJ15460R

REMAN-HYD PUMP

New style pilot pumps are internally drained. If drain port is not present the dealer can discard the 2 elbows and use plug PN159085A1 in the tube assembly.

1шт.

KSJ15460C

CORE-HYDRAULIC PUMP

Return Number

1шт.

84

160160A1

VALVE SECTION

1шт.

Consists Of Ref. Numbers 85 To 103

1шт.

85

NSS

NOT SOLD SEPARAT

1шт.

86

862-6060

HEX SOC SCREW,M6 x 60mm, Cl 12.9

M6 x 60; 12.9

3шт.

87

155496A1

PLUG

1шт.

88

LK00003

PLUG

3шт.

89

154467A1

O-RING,10.8mm ID x 2.4mm Width

4шт.

90

154483A1

O-RING

1шт.

91

LJ00684

SOLENOID VALVE

1шт.

Consists Of Ref. Numbers 92 To 103

1шт.

92

NSS

NOT SOLD SEPARAT

1шт.

93

NSS

NOT SOLD SEPARAT

1шт.

94

NSS

NOT SOLD SEPARAT

1шт.

95

NSS

NOT SOLD SEPARAT

1шт.

96

NSS

NOT SOLD SEPARAT

1шт.

97

NSS

NOT SOLD SEPARAT

1шт.

98

155203A1

O-RING

1шт.

99

155204A1

O-RING

1шт.

100

160652A1

O-RING

1шт.

101

LL00055

SOLENOID

1шт.

102

NSS

NOT SOLD SEPARAT

1шт.

103

NSS

NOT SOLD SEPARAT

1шт.
