(08-163-09[01]) - HIGH PRESSURE HYDRAULIC PUMP - DRIVE - STANDARD - KAWASAKI

Запчасти Case CX350 (08-163-09[01]) - HIGH PRESSURE HYDRAULIC PUMP - DRIVE - STANDARD - KAWASAKI (08) - HYDRAULICS

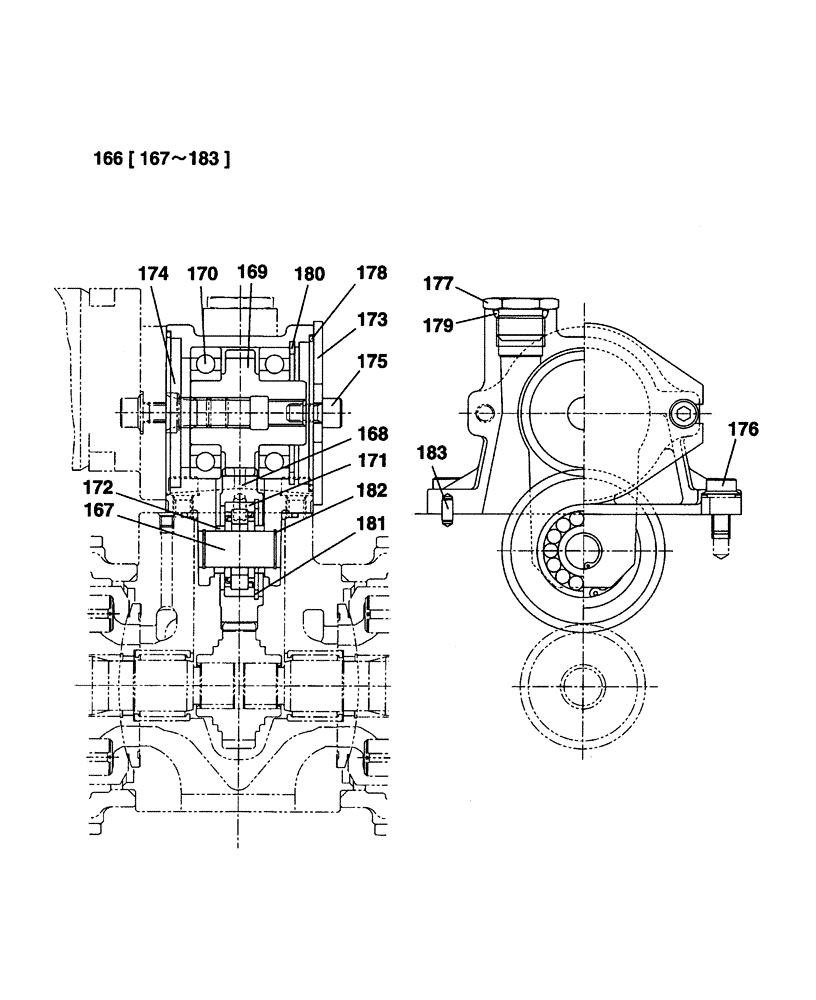

Схема запчастей Case CX350 - (08-163-09[01]) - HIGH PRESSURE HYDRAULIC PUMP - DRIVE - STANDARD - KAWASAKI (08) - HYDRAULICS
172
173
183
167
169
167
171
182
178
176
168
181
179
170
174
177
166
180
183
175
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

KSJ2851

PUMP, HYDRAULIC

1шт.

Consists Of Ref. Numbers 166 To 183

1шт.

KSJ15460R

REMAN-HYD PUMP

New style pilot pumps are internally drained. If drain port is not present the dealer can discard the 2 elbows and use plug PN159085A1 in the tube assembly.

1шт.

KSJ15460C

CORE-HYDRAULIC PUMP

Return Number

1шт.

166

KMJ2983

REPAIR KIT

1шт.

Consists Of Ref. Numbers 167 To 183

1шт.

167

NSS

NOT SOLD SEPARAT

1шт.

168

NSS

NOT SOLD SEPARAT

1шт.

169

NSS

NOT SOLD SEPARAT

1шт.

170

NSS

NOT SOLD SEPARAT

2шт.

171

NSS

NOT SOLD SEPARAT

1шт.

172

NSS

NOT SOLD SEPARAT

2шт.

173

NSS

NOT SOLD SEPARAT

1шт.

174

NSS

NOT SOLD SEPARAT

1шт.

175

863-10020

HEX SOC SCREW,M10 x 20mm, Cl 12.9

M10 x 20; 12.9

2шт.

176

LA00691

BOLT,Hex Skt Hd

4шт.

177

155471A1

PLUG

1шт.

178

154689A1

O-RING

1шт.

179

154503A1

O-RING

1шт.

180

800-2172

SNAP RING

72 mm

1шт.

181

800-2152

SNAP RING,M52, Int

1шт.

182

800-2120

SNAP RING,M20, Int

20 mm

1шт.

183

NSS

NOT SOLD SEPARAT

2шт.
