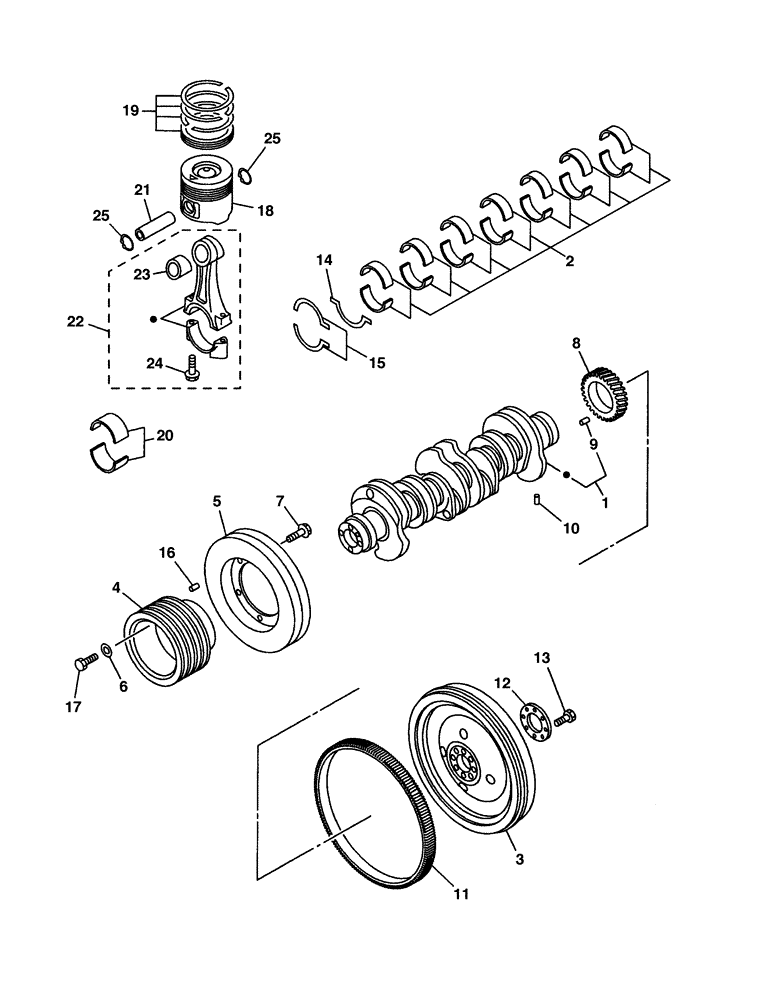

Запчасти Case CX350 (02-051-00[01]) - PISTONS AND CRANKSHAFT - FLYWHEEL (03) - FUEL SYSTEM

1

438133A1

CRANKSHAFT

1шт.

Consists Of Ref. Number 9

1шт.

2

438055A1

BEARING,CON.ROD

BEARING, CON. ROD Pink

7шт.

2

438056A1

BEARING,CON.ROD

BEARING, CON. ROD Green

7шт.

2

438057A1

BEARING,CON.ROD

BEARING, CON. ROD Yellow

7шт.

3

437904A1

FLYWHEEL

1шт.

4

437905A1

PULLEY

1шт.

5

438093A1

DAMPER

1шт.

6

438188A1

PLATE

4шт.

7

87597950

BOLT

6шт.

8

438092A1

GEAR

1шт.

9

289770A1

PIN

8 OD

2шт.

10

419830A1

SMALL PIN

5 OD

1шт.

11

438063A1

GEAR

1шт.

12

438140A1

WASHER

1шт.

13

438080A1

BOLT

8шт.

14

438144A1

WASHER

1шт.

15

438146A1

WASHER

2шт.

16

438051A1

PIN

1шт.

17

438192A1

BOLT

4шт.

18

437901A1

PISTON

6шт.

19

438054A1

PISTON RING SET

6шт.

20

438113A1

CRANKSHAFT BEARING

Green

6шт.

20

87738592

CRANKSHAFT BEARING,Half Round, 78mm OD x 30.3mm W x 2.507-2.513mm Thk

Yellow

6шт.

21

438132A1

PISTON PIN

6шт.

22

87387355

PITMAN ASSY.

6шт.

Consists Of Ref. Numbers 23, 24

1шт.

23

438097A1

BRONZE BUSHING

BRONZE BUSH

1шт.

24

437902A1

BOLT

2шт.

25

437874A1

CIRCLIP

12шт.
