(07-005-05[02]) - TRAVEL MOTOR

Запчасти Case CX350 (07-005-05[02]) - TRAVEL MOTOR (07) - BRAKES

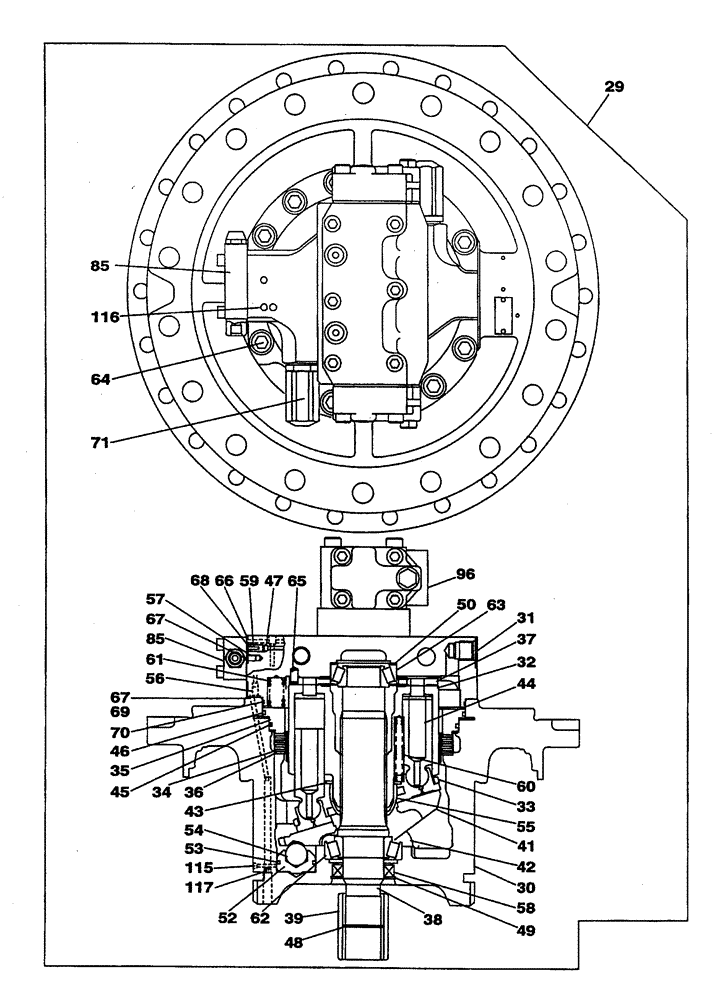

Схема запчастей Case CX350 - (07-005-05[02]) - TRAVEL MOTOR (07) - BRAKES
62
35
52
115
85
117
36
45
55
67
65
32
57
63
33
30
60
66
71
38
59
50
54
96
39
68
85
116
31
34
53
37
64
44
61
56
69
46
58
29
49
42
67
41
47
70
48
43
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

29

LJ01273

HYDRAULIC MOTOR

1шт.

Consists Of Ref. Numbers 30 To 117

1шт.

Motor, Pistons

1шт.

30

LW00386

HOUSING

1шт.

31

LW00387

COVER

1шт.

32

LS00207

CYLINDER BLOCK

1шт.

33

LH00320

RETAINER

1шт.

34

LR00858

PLATE

4шт.

35

LJ00954

PISTON

1шт.

36

LR00859

ADJUSTING PLATE

5шт.

37

LR00877

PLATE

1шт.

38

LB00792

DRIVE SHAFT

1шт.

39

LB00793

COUPLING FLANGE

1шт.

40

LR01061

PLATE

1шт.

Consists Of Ref. Numbers 41, 42

1шт.

41

NSS

NOT SOLD SEPARAT

Plate

1шт.

42

NSS

NOT SOLD SEPARAT

Bearing, Roller

2шт.

43

LR00950

SPRING SEAT

1шт.

44

LJ00968

JACK PISTON

9шт.

45

LE012900

SEALING RING

SEALRING

1шт.

46

LE012910

SEALING RING

SEALRING

1шт.

47

LJ00956

VALVE, CHECK

3шт.

48

800-2140

SNAP RING,M40, Int

1шт.

49

800-2168

SNAP RING,M68, Int

1шт.

50

LH00389

SHIM KIT

1шт.

Consists Of Ref. Numbers 50.1 To 50.6

1шт.

50.1

LH00428

SHIM,0.4mm Thk

1шт.

50.2

LH00429

SHIM,0.5mm Thk

1шт.

50.3

LH00430

SHIM,0.6mm Thk

1шт.

50.4

LH00431

SHIM,0.7mm Thk

1шт.

50.5

LH00432

SHIM,0.8mm Thk

1шт.

50.6

LH00433

SHIM,0.9mm Thk

1шт.

51

LJ01075

PISTON

1шт.

Consists Of Ref. Numbers 52, 53

1шт.

52

NSS

NOT SOLD SEPARAT

Piston

1шт.

53

NSS

NOT SOLD SEPARAT

Seal, Piston

1шт.

54

LX00044

BALL

1шт.

55

LB00795

BALL JOINT

1шт.

56

TK00140

RESTRICTOR

1шт.

57

LK005000

RESTRICTOR

1шт.

58

LE00997

OIL SEAL

1шт.

59

LG00429

COMPRESSION SPRING

3шт.

60

LG00430

COMPRESSION SPRING

9шт.

61

LG00431

COMPRESSION SPRING

14шт.

62

LB00796

TAPERED BEARING,45mm ID x 85mm OD x 24.75mm W

1шт.

63

LB00797

TAPERED BEARING,35mm ID x 72mm OD x 24.25mm W

1шт.

64

863-18050

HEX SOC SCREW,M18 x 50mm, Cl 12.9

M18 x 50; 12.9

10шт.

65

335B080T012

DOWEL

8 x 12

1шт.

66

154447A1

O-RING

3шт.

67

154455A1

O-RING

2шт.

68

154459A1

O-RING

3шт.

69

LE00998

O-RING

1шт.

70

LE00999

O-RING

215.57 x 2.62

1шт.

71

LJ00958

VALVE, PRESSURE RELI

EF

1шт.

See Page(s) 07-005-06-02

1шт.

85

LJ00962

VALVE

1шт.

See Page(s) 07-005-06-02

1шт.

96

LJ01263

VALVE

1шт.

See Page(s) 07-005-07-02

1шт.

115

LK00392

PLUG

1шт.

116

LK00393

PLUG

4шт.

117

LK00394

PLUG

1шт.

118

LZ00628

SEAL KIT

1шт.

Consists Of Ref. Numbers 28, 45, 46, 58, 66 To 70, 81 To 84, 93, 94, 101, 102, 107, 109, 112 To 114

1шт.

See Page(s) 06-003-05-02, 07-005-06-02, 07-005-07-02

1шт.
