1
154641A1
O-RING
1шт.
2
862-10060
HEX SOC SCREW,M10 x 60mm, Cl 12.9
M10 x 60; 12.9
4шт.
3
163417A1
VALVE
1шт.
3
KRJ6992
CHECK VALVE
1шт.
Only CX330
1шт.
4
KSJ2898
TUBE ASSY.,41.6 mm ID x 48.6 mm OD
1шт.
5
KHJ1792
HOSE
1шт.
6
150890A1
CLIP,ELECTRICAL
4шт.
7
KSJ2705
HYD TUBE,41.6 mm ID x 48.6 mm OD
1шт.
8
KSJ2706
BRACKET
1шт.
9
152718A1
BOLT,Spcl, Hex Wshr, M12 x 25mm, Cl 10.9
4шт.
10
KHJ1792
HOSE
1шт.
11
150890A1
CLIP,ELECTRICAL
4шт.
12
KTJ2087
TUBE ASSY.,41.6 mm ID x 48.6 mm OD
1шт.
13
154609A1
O-RING
1шт.
14
862-10040
HEX SOC SCREW,M10 x 40mm, Cl 12.9
4шт.
15
KTJ2089
BRACKET
1шт.
16
152718A1
BOLT,Spcl, Hex Wshr, M12 x 25mm, Cl 10.9
2шт.
17
154609A1
O-RING
1шт.
18
862-10040
HEX SOC SCREW,M10 x 40mm, Cl 12.9
4шт.
19
KTJ2088
HYD TUBE,41.6 mm ID x 48.6 mm OD
1шт.
20
KTJ2089
BRACKET
1шт.
21
152718A1
BOLT,Spcl, Hex Wshr, M12 x 25mm, Cl 10.9
2шт.
22
KHJ1792
HOSE
1шт.
23
150890A1
CLIP,ELECTRICAL
4шт.
24
KSJ2816
HYD TUBE,41.6 mm ID x 48.6 mm OD
1шт.
25
KSJ2708
BRACKET
1шт.
26
152718A1
BOLT,Spcl, Hex Wshr, M12 x 25mm, Cl 10.9
3шт.
27
162348A1
HOSE,48.5mm ID x 310mm L
1шт.
28
150890A1
CLIP,ELECTRICAL
4шт.
29
154641A1
O-RING
1шт.
30
862-10060
HEX SOC SCREW,M10 x 60mm, Cl 12.9
M10 x 60; 12.9
4шт.
31
159054A1
VALVE
1шт.
32
KSJ2892
TUBE ASSY.,35.7 mm ID x 42.7 mm OD
1шт.
33
152788A1
HYDRAULIC HOSE
1шт.
34
150890A1
CLIP,ELECTRICAL
4шт.
35
159085A1
PLUG
1шт.
Consists Of Ref. Number 36
1шт.
36
154487A1
O-RING
1шт.
37
152924A1
PLUG
1шт.
Consists Of Ref. Number 38
1шт.
38
154503A1
O-RING
1шт.
39
162335A1
PLUG
1шт.
40
157582A1
ELBOW,90 Degree, 1 1/4" O-Ring x 1 1/4"
1шт.
With Option
1шт.
Consists Of Ref. Number 41
1шт.
41
154559A1
O-RING
1шт.
42
REF
INSTRUCTION
1шт.
See Page(s) 08-127-00, 08-133-00
1шт.
43
Plug
1шт.
Consists Of Ref. Number 44
1шт.
44
O-Ring
1шт.

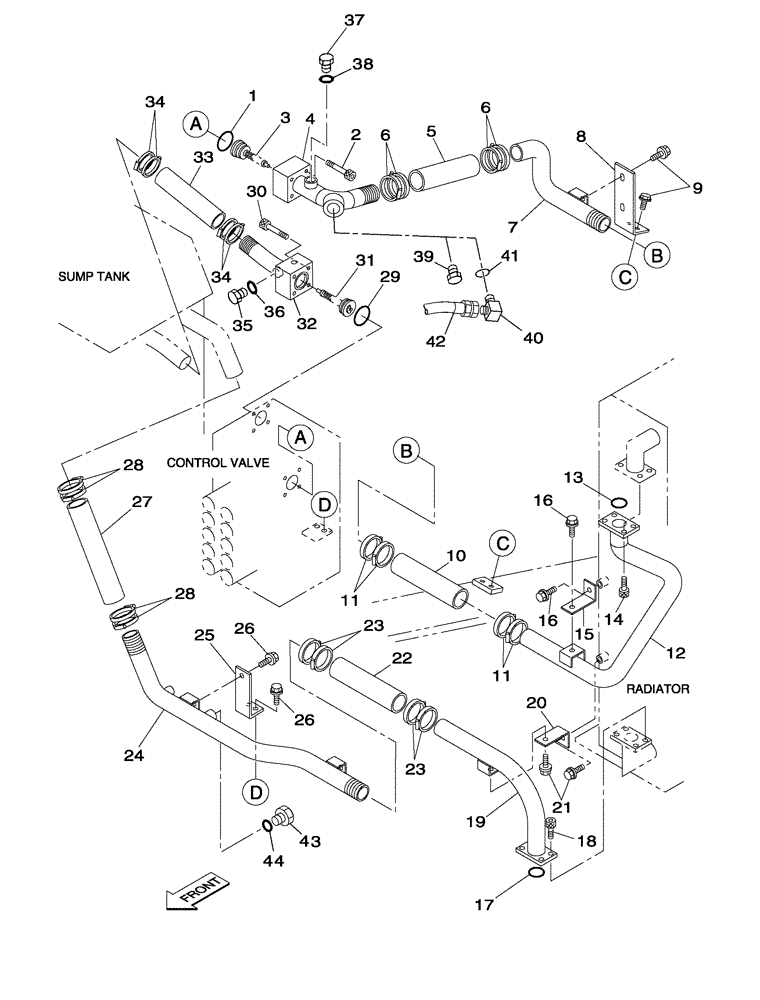

![Схема запчастей Case CX350 - (08-021-00[01]) - HYDRAULIC CIRCUIT - COOLER (08) - HYDRAULICS](https://www.partsell.ru/storage/images/casece/263123.png)
