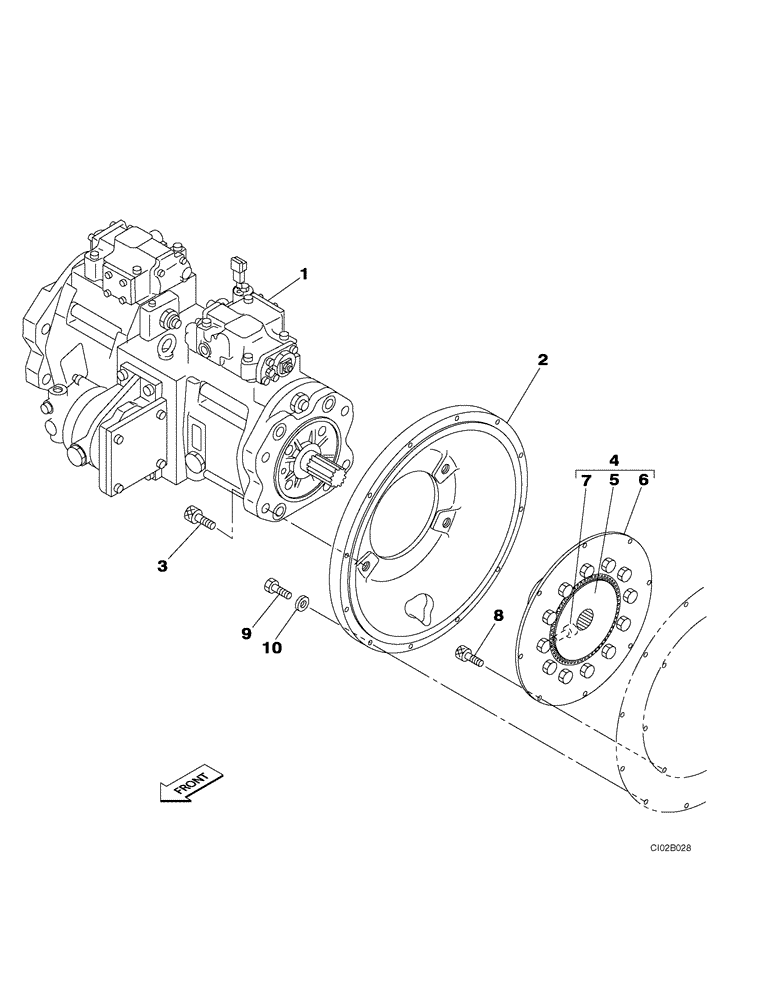

Запчасти Case CX460 (08-02) - PUMP ASSY, HYDRAULIC - COUPLING (08) - HYDRAULICS

1

KTJ2030

HYDRAULIC PUMP

See Figure 08-65 - 08-70

1шт.

87341989

REMAN-HYD PUMP

1шт.

87341991

CORE-HYDRAULIC PUMP

1шт.

2

KTJ2041

FLANGE

1шт.

3

108R020Y065R

BOLT

4шт.

4

KTJ2232

COUPLING

Incl. 5 - 7

1шт.

5

KTJ2233

HUB

1шт.

6

KTJ2234

FLANGE

1шт.

7

KTJ2100

BOLT,Spcl

1шт.

8

862-10035

HEX SOC SCREW,M10 x 35mm, Cl 12.9

8шт.

10

150409A1

WASHER

9шт.

9

827-10045

BOLT,Hex, M10 x 1.5 x 45mm, Cl 10.9

9шт.
