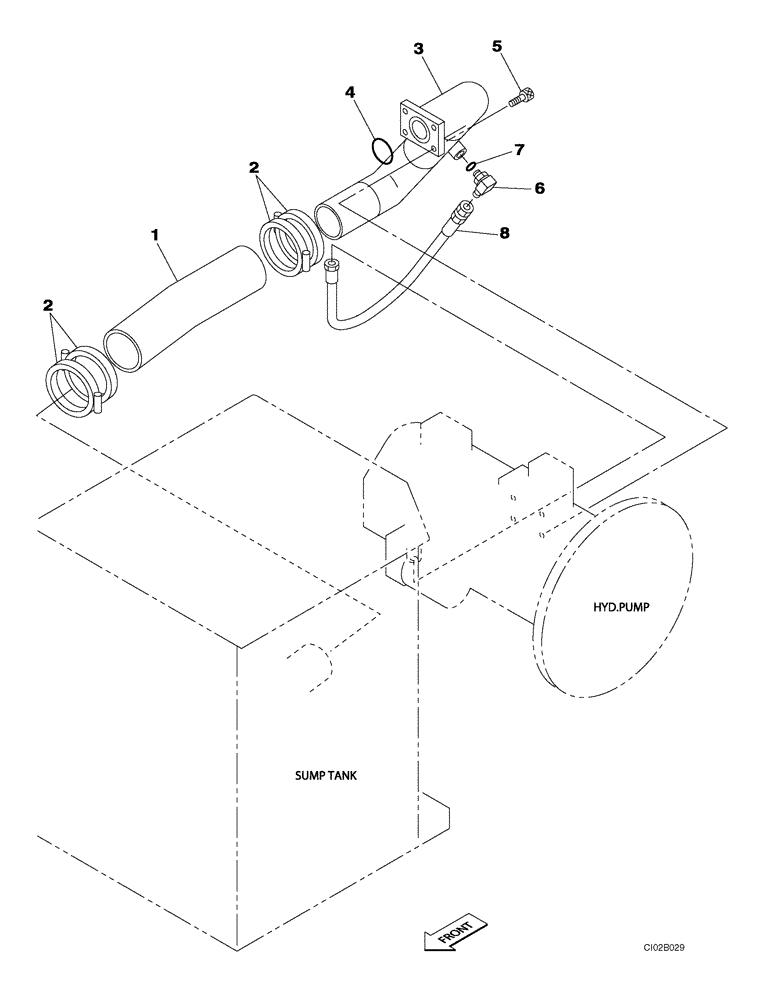

Запчасти Case CX460 (08-03) - HYDRAULICS - PUMP SUCTION LINE (08) - HYDRAULICS

1

KRJ3695

HOSE

1шт.

2

150905A1

CLAMP

4шт.

3

KTJ2199

SUCTION PIPE

PIN DAC0746101 and earlier

1шт.

3a

KTJ2351

HYD TUBE

PIN DAC0746102 and after. Not Illustrated

1шт.

4

154705A1

O-RING

Replaces KHJ1907

1шт.

5

862-16035

HEX SOC SCREW,M16 x 35mm, Cl 12.9

4шт.

6

157580A1

ELBOW,90 Degree, 3/4" O-Ring x 3/4"

Incl. 7

1шт.

7

154503A1

O-RING

1шт.

8

KTJ1991

HYDRAULIC HOSE,19.05 mm ID x 750.00 mm

1шт.
