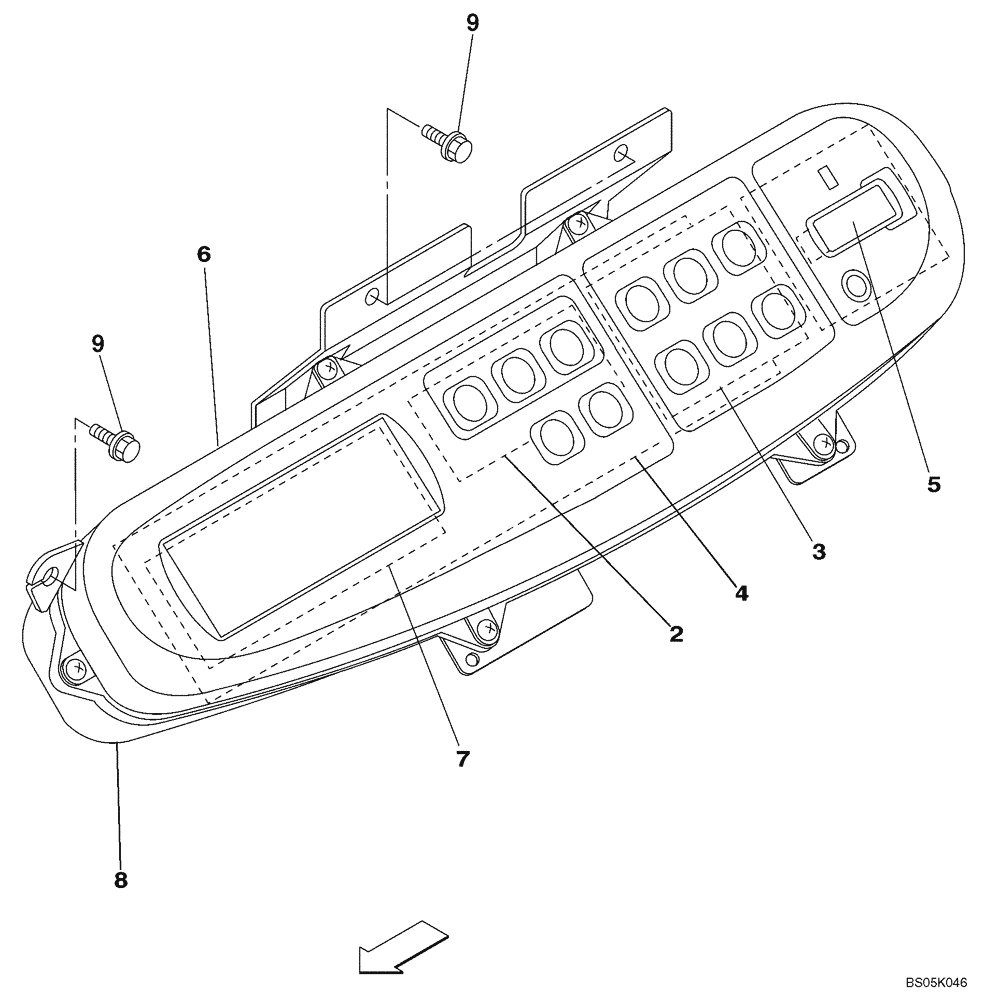

(04-010-00[01]) - MONITOR ASSY - INSTRUMENT PANEL

Запчасти Case CX700 (04-010-00[01]) - MONITOR ASSY - INSTRUMENT PANEL (04) - ELECTRICAL SYSTEMS

Схема запчастей Case CX700 - (04-010-00[01]) - MONITOR ASSY - INSTRUMENT PANEL (04) - ELECTRICAL SYSTEMS
3
6
4
9
5
2
7
9
8
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

KHR3827

CLUSTER, INSTR.

CLUSTER, INSTRUMENT Incl. 2 - 8

1шт.

KHR3827R

REMAN-INSTR CLUSTER

CX700 CRAWLER EXCAVATOR TIER 3 (NA), CLUSTER, INSTRUMENT (3/06-)

1шт.

KHR3827C

CORE-CLUSTER, INSTR

Return Number

1шт.

2

KHR3072

PRINTED CIRCUIT BOAR

1шт.

3

KHR2440

PRINTED CIRCUIT BOAR

1шт.

4

KHR3262

CONTROL MONITOR

1шт.

5

KHR2442

HOURMETER

1шт.

6

KHR3160

BODY

1шт.

7

KHR2724

PRINTED CIRCUIT BOAR

1шт.

8

KHR3844

CONSOLE

1шт.

9

159602A1

BOLT,Sems, Hex, M6 x 16mm

6шт.
