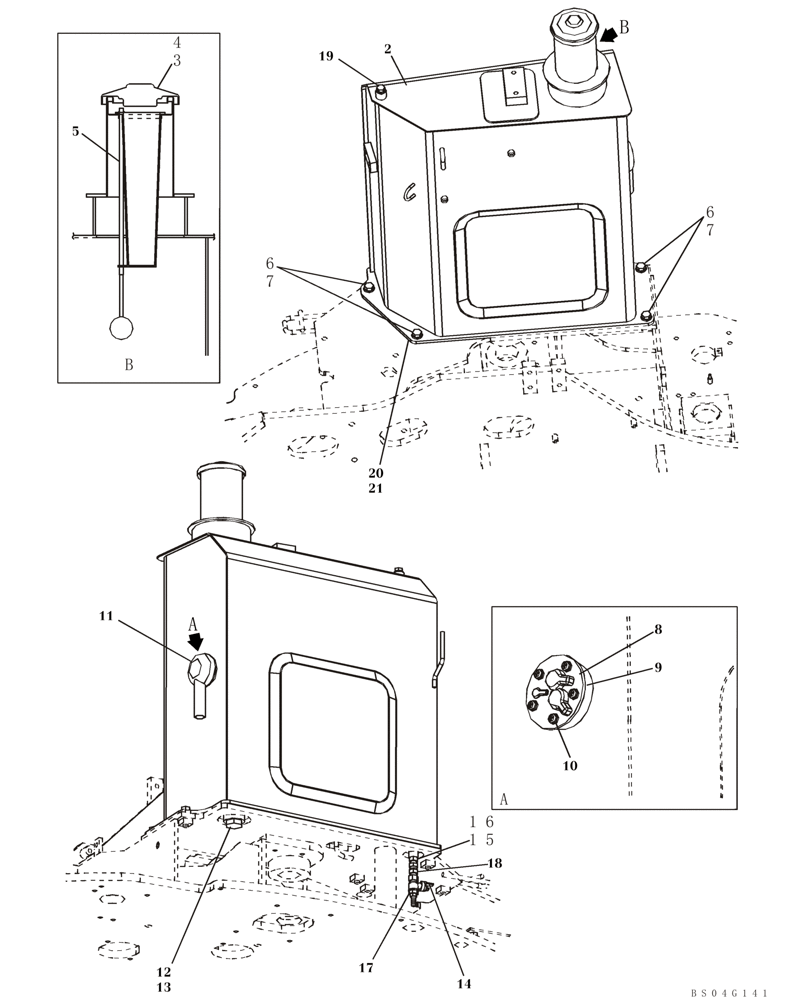

Запчасти Case CX80 (03-01) - FUEL TANK (03) - FUEL SYSTEM

KAH1429

FUEL TANK

Incl. 1 - 5

1шт.

2

NSS

NOT SOLD SEPARAT

Tank, Fuel

1шт.

3

150492A1

LOCKABLE FUEL CAP

Incl. 4

1шт.

4

163804A1

GASKET

1шт.

5

KHH0500

FILTER

1шт.

6

627-12040

BOLT,Hex, M12 x 1.75 x 40mm, Cl 10.9, Full Thd

4шт.

7

150811A1

WASHER

4шт.

8

KHR3279

SENSOR

1шт.

9

152591A1

GASKET,2mm Thk

1шт.

10

151688A1

SCREW,Phil Pan Hd, M5 x 12mm, W/ Wshr

5шт.

11

159698A1

COVER

1шт.

12

152924A1

PLUG

Incl. 13

1шт.

13

154503A1

O-RING

1шт.

14

158923A1

DRAIN VALVE

1шт.

15

152127A1

HYD CONNECTOR,1/4" NPT O-Ring x 1/4" NPT

Incl. 16

1шт.

16

154467A1

O-RING,10.8mm ID x 2.4mm Width

1шт.

17

157929A1

FITTING

1шт.

18

153601A1

ADAPTER

1шт.

19

166351A1

BOLT,Sems, M10 x 20mm

1шт.

20

KMJ1897

SHIM,0.8mm Thk

1шт.

21

KMJ1898

SHIM,2.0mm Thk

1шт.
