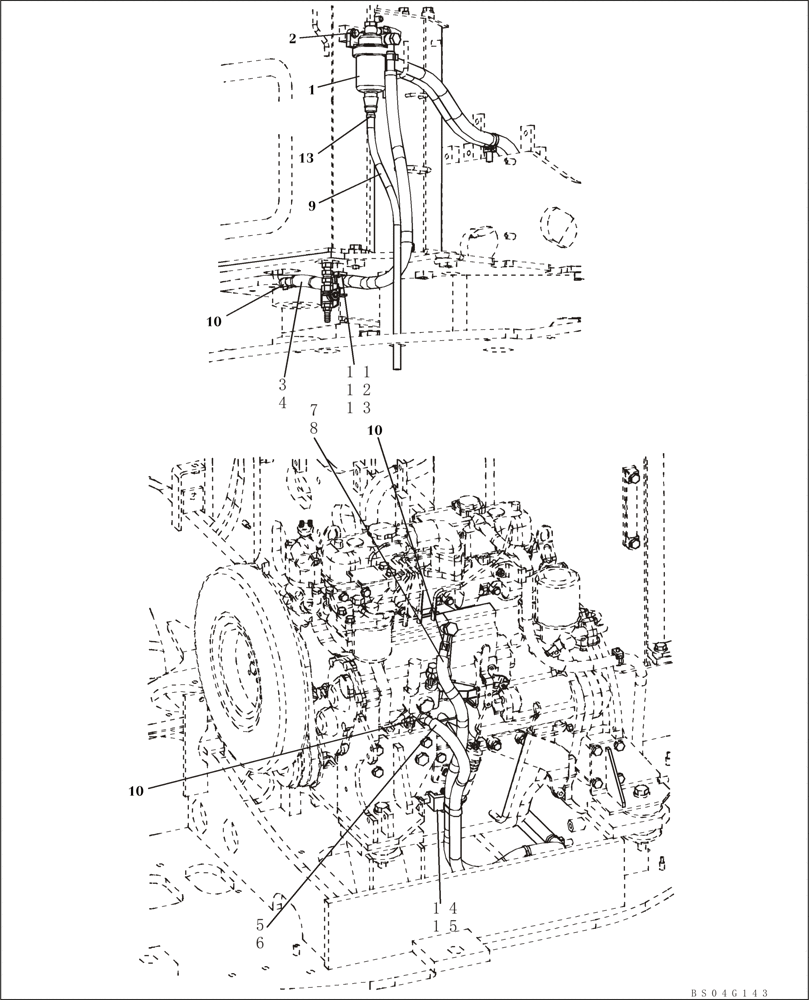

Запчасти Case CX80 (03-03) - FUEL LINES (03) - FUEL SYSTEM

1

151071A1

WATER TRAP

Water Separator; See Figure 03-04

1шт.

2

167182A1

BOLT,Sems, M8 x 25mm

2шт.

3

KHH0523

HOSE ASSY.

1шт.

4

150488A1

PLASTIC-RUBBER TUBE

1шт.

5

KHH0435

FUEL HOSE

1шт.

6

158067A1

PLASTIC-RUBBER TUBE

1шт.

7

KHH0501

FUEL HOSE

1шт.

8

158067A1

PLASTIC-RUBBER TUBE

1шт.

9

157627A1

PLASTIC-RUBBER TUBE

600 mm (23-5/8 in), Cut From 150613A1 Bulk Tube

1шт.

10

KHH0405

MOUNTING CLIP

3шт.

11

150860A1

COLLAR

1шт.

12

840-168

SCREW,Pan, M6 x 1 x 8mm, Cl 4.8

400mm (15-3/4 in); Cut from 150613A1

1шт.

13

150496A1

MOUNTING CLIP

1шт.

14

KHR2582

CLAMP

1шт.

15

KHJ2298

BOLT,Spcl

1шт.
