(08-82) - PUMP ASSY, HYDRAULIC - PISTON

Запчасти Case CX80 (08-82) - PUMP ASSY, HYDRAULIC - PISTON (08) - HYDRAULICS

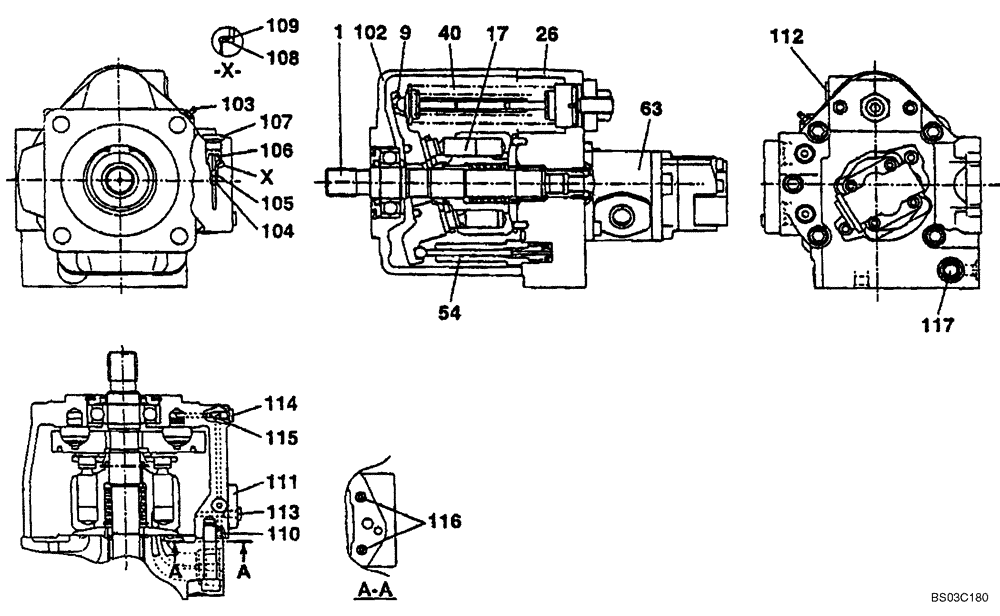

Схема запчастей Case CX80 - (08-82) - PUMP ASSY, HYDRAULIC - PISTON (08) - HYDRAULICS
26
110
103
63
115
111
117
112
54
106
107
40
1
114
105
102
9
113
17
108
116
104
109
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

KAJ4590

HYDRAULIC PUMP

Includes Parts on Figure(s) 08-82 - 08-86

1шт.

1

LB00874

SHAFT

See Figure 08-83

1шт.

9

LR012150

PLATE

PLATE, See Figure 08-83

1шт.

17

LZ006720

BLOCK

PUMP, See Figure 08-83

1шт.

26

LW00404

COVER

See Figure 08-84

1шт.

40

LG00459

SPRING

See Figure 08-84

1шт.

54

LJ01037

PISTON

See Figure 08-84

1шт.

63

LJ013170

PUMP

PUMP, HYDRAULIC, Gear; See Figure 08-86

1шт.

102

NSS

NOT SOLD SEPARAT

Housing

1шт.

103

LNP0225

VALVE PRESSURE RELIE

1шт.

104

NSS

NOT SOLD SEPARAT

Bushing

1шт.

105

LB00866

BALL

Steel

1шт.

106

155501A1

PLUG

1шт.

107

156635A1

PLUG

1шт.

108

164819A1

PACKING

Copper

1шт.

109

LH00346

SHIM

1шт.

110

NSS

NOT SOLD SEPARAT

Plug

1шт.

111

NSS

NOT SOLD SEPARAT

Nameplate, Serial Number

1шт.

112

LK00118

PLUG

1шт.

113

LK00309

PLUG

1шт.

114

LLP0134

PLUG

1шт.

115

LJ01046

ORIFICE

1шт.

116

LE00180

RING

2шт.

117

LNP0224

VALVE PRESSURE RELIE

See Figure 08-85

1шт.

LT00113

HOUSING

Kit; Incl. 102, 104, 110

1шт.
