(08-27) - PILOT CONTROL LINES, PARTITION - MODELS WITHOUT LOAD HOLD

Запчасти Case CX800 (08-27) - PILOT CONTROL LINES, PARTITION - MODELS WITHOUT LOAD HOLD (08) - HYDRAULICS

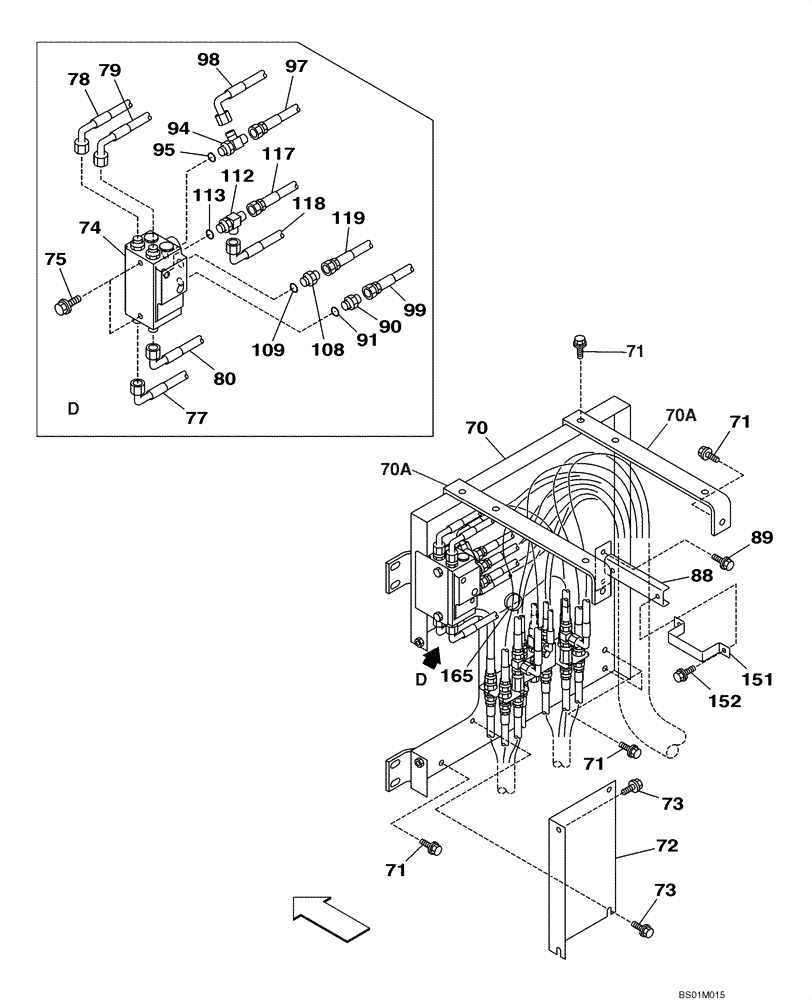

Схема запчастей Case CX800 - (08-27) - PILOT CONTROL LINES, PARTITION - MODELS WITHOUT LOAD HOLD (08) - HYDRAULICS
71
113
94
118
71
119
79
165
95
90
70a
72
99
74
75
112
91
89
73
77
71
88
117
98
73
97
70a
78
80
152
71
109
151
108
70
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

Partition

1шт.

Models Without Load Hold

1шт.

70

KUJ0320

BRACKET

1шт.

70a

KUJ0452

CONSOLE

2шт.

71

166352A1

BOLT

With Attached Washer

7шт.

72

KTJ2108

COVER

1шт.

73

166052A1

BOLT

With Attached Washer

4шт.

74

KUJ0387

VALVE, CUSHION

See Figure 08-76A

1шт.

75

166052A1

BOLT

With Attached Washer

2шт.

77

KHJ1460

HYDRAULIC HOSE

See Figure 08-28

1шт.

78

KBJ2349

HOSE

See Figure 08-28

1шт.

79

KRJ3932

HOSE

See Figure 08-28

1шт.

80

KTJ1639

HOSE

See Figure 08-28

1шт.

88

KTJ2109

BRACKET

1шт.

89

166052A1

BOLT

With Attached Washer

2шт.

90

152128A1

HYD CONNECTOR,3/8" NPT O-Ring x 3/8" NPT

Incl. 91

1шт.

91

154475A1

O-RING

1шт.

94

164107A1

TEE,3/8" ORB x 3/8" - 19 NPT x 3/8" - 19 NPT

Incl. 95

1шт.

95

154475A1

O-RING

1шт.

97

159063A1

HOSE

See Figure 08-29

1шт.

98

KRJ4970

HOSE

See Figure 08-29

1шт.

99

159063A1

HOSE

See Figure 08-29

1шт.

108

152128A1

HYD CONNECTOR,3/8" NPT O-Ring x 3/8" NPT

Incl. 109

1шт.

109

154475A1

O-RING

1шт.

112

164107A1

TEE,3/8" ORB x 3/8" - 19 NPT x 3/8" - 19 NPT

Incl. 113

1шт.

113

154475A1

O-RING

1шт.

117

159064A1

HOSE

See Figure 08-29

1шт.

118

KRJ4762

HOSE

See Figure 08-29

1шт.

119

MPJ5480

HOSE

See Figure 08-29

1шт.

151

159036A1

CLAMP

1шт.

152

166350A1

BOLT

With Attached Washer

2шт.

165

150071A1

MOUNTING CLIP

1шт.
