(08-34) - PILOT CONTROL LINES, PARTITION - MODELS WITH LOAD HOLD

Запчасти Case CX800 (08-34) - PILOT CONTROL LINES, PARTITION - MODELS WITH LOAD HOLD (08) - HYDRAULICS

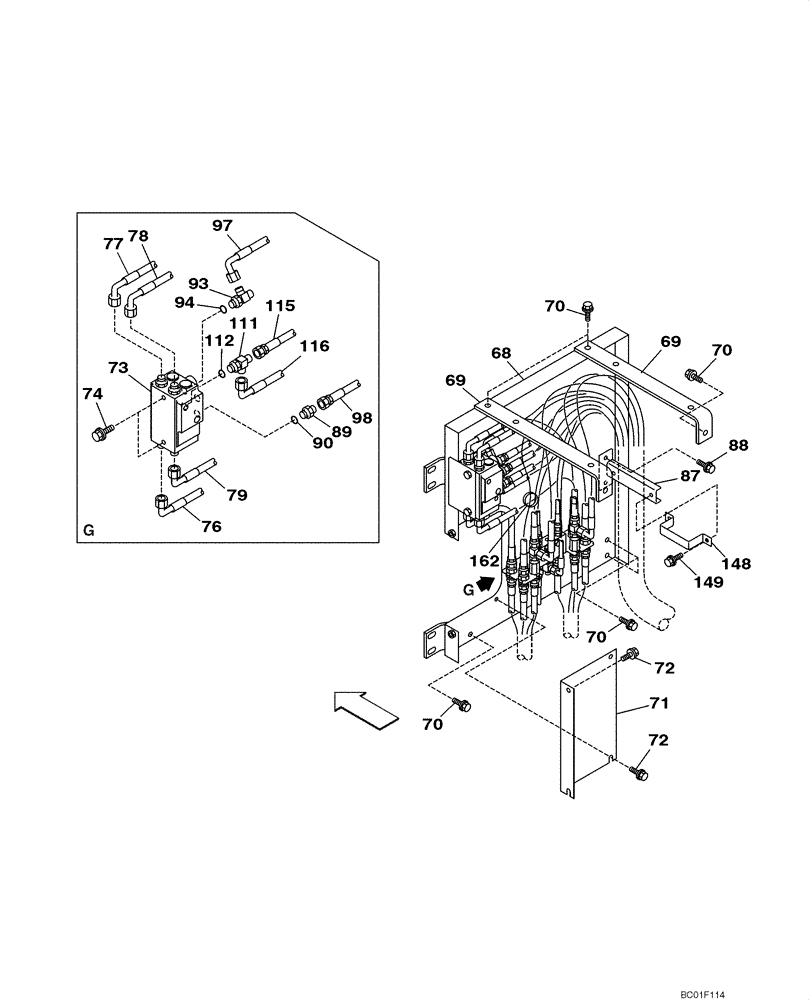

Схема запчастей Case CX800 - (08-34) - PILOT CONTROL LINES, PARTITION - MODELS WITH LOAD HOLD (08) - HYDRAULICS
98
97
90
70
69
77
76
70
162
116
112
72
111
148
71
93
149
89
70
87
78
88
115
70
72
94
68
74
69
79
73
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

Partition

1шт.

Models With Load Hold

1шт.

68

KUJ0320

BRACKET

1шт.

69

KUJ0370

BRACKET

2шт.

70

166352A1

BOLT

With Attached Washer

7шт.

71

KTJ2108

COVER

1шт.

72

166052A1

BOLT

With Attached Washer

4шт.

73

KUJ0387

VALVE, CUSHION

See Figure 08-76A

1шт.

74

166052A1

BOLT

With Attached Washer

2шт.

76

161068A1

HYDRAULIC HOSE

See Figure 08-35

1шт.

77

KHJ1606

HYDRAULIC HOSE

See Figure 08-35

1шт.

78

KAJ2467

HYDRAULIC HOSE

See Figure 08-35

1шт.

79

168411A1

HOSE,650.00 mm

See Figure 08-35

1шт.

87

KTJ2109

BRACKET

1шт.

88

166052A1

BOLT

2шт.

89

152128A1

HYD CONNECTOR,3/8" NPT O-Ring x 3/8" NPT

Incl. 90

1шт.

90

154475A1

O-RING

1шт.

93

164107A1

TEE,3/8" ORB x 3/8" - 19 NPT x 3/8" - 19 NPT

Incl. 94

1шт.

94

154475A1

O-RING

1шт.

97

KRJ4970

HOSE

See Figure 08-36

1шт.

98

159063A1

HOSE

See Figure 08-36

1шт.

111

164107A1

TEE,3/8" ORB x 3/8" - 19 NPT x 3/8" - 19 NPT

Incl. 112

1шт.

112

154475A1

O-RING

1шт.

115

159064A1

HOSE

See Figure 08-36

1шт.

116

KRJ4762

HOSE

See Figure 08-36

1шт.

148

159036A1

CLAMP

1шт.

149

166350A1

BOLT

With Attached Washer

2шт.

162

150071A1

MOUNTING CLIP

1шт.
