(04-11) - MONITOR ASSY - INSTRUMENT PANEL

Запчасти Case CX800 (04-11) - MONITOR ASSY - INSTRUMENT PANEL (04) - ELECTRICAL SYSTEMS

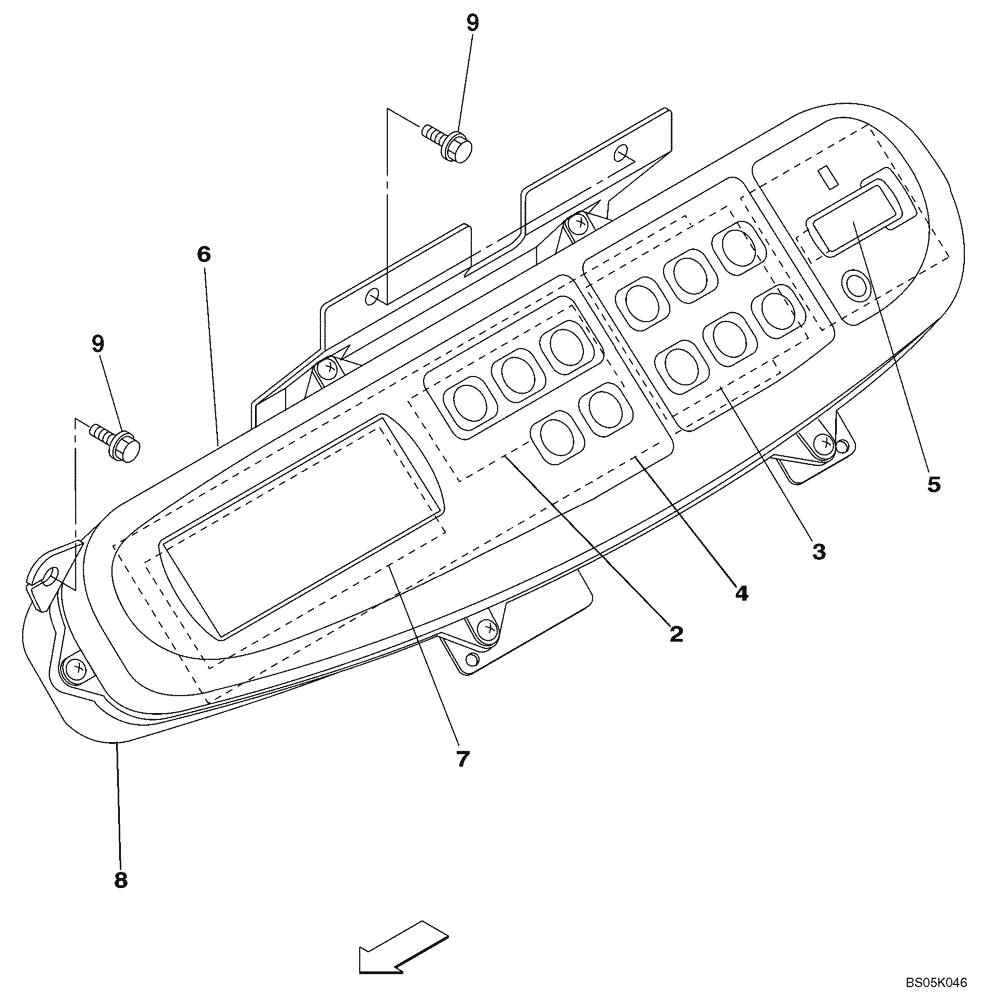

Схема запчастей Case CX800 - (04-11) - MONITOR ASSY - INSTRUMENT PANEL (04) - ELECTRICAL SYSTEMS
4
7
5
6
3
8
9
9
2
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

KHR3827

CLUSTER, INSTR.

CLUSTER, INSTRUMENT Incl. 2 - 8

1шт.

KHR3827R

REMAN-INSTR CLUSTER

CX800 CASE CRAWLER EXCAVATOR (NORTH AMERICA), CLUSTER, INSTRUMENT

1шт.

KHR3827C

CORE-CLUSTER, INSTR

Return Number

1шт.

2

KHR3072

PRINTED CIRCUIT BOAR

1шт.

3

KHR2440

PRINTED CIRCUIT BOAR

1шт.

4

KHR3829

CONTROL MONITOR

Replaces KHR3262

1шт.

5

KHR2442

HOURMETER

1шт.

6

KHR3160

BODY

1шт.

7

KHR2724

PRINTED CIRCUIT BOAR

1шт.

8

KHR3844

CONSOLE

1шт.

9

159602A1

BOLT,Sems, Hex, M6 x 16mm

6шт.
