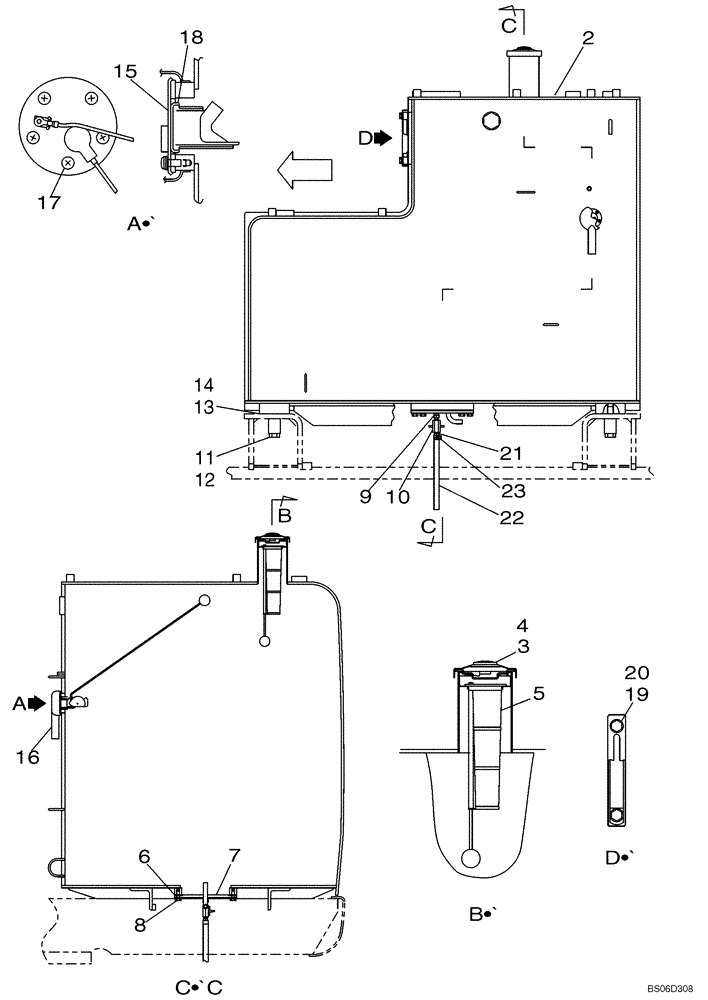

Запчасти Case CX800 (03-002-00[01]) - FUEL TANK (03) - FUEL SYSTEM

KWH0068

FUEL TANK

Incl. 2 - 8

1шт.

2

NSS

NOT SOLD SEPARAT

Tank, Fuel

1шт.

3

150492A1

LOCKABLE FUEL CAP

Incl. 4

1шт.

4

163804A1

GASKET

1шт.

5

KHH0500

FILTER

1шт.

6

151322A1

GASKET,3mm Thk

1шт.

7

KWH10090

COVER

1шт.

8

166052A1

BOLT

M10 x 25

8шт.

9

150847A1

HYD CONNECTOR

1шт.

10

158923A1

DRAIN VALVE

1шт.

11

102R020Y090R

BOLT

M20 x 90

8шт.

12

KUJ0017

SPACER

8шт.

13

153208A1

SHIM

1шт.

14

153209A1

SHIM

1шт.

15

KWH0025

SENSOR

1шт.

16

159698A1

COVER

1шт.

17

151688A1

SCREW,Phil Pan Hd, M5 x 12mm, W/ Wshr

M5 x 12

5шт.

18

152591A1

GASKET,2mm Thk

1шт.

19

159815A1

GAUGE

Incl. 20

1шт.

20

159816A1

COVER

1шт.

21

157929A1

FITTING

1шт.

22

KHH0421

FUEL HOSE,250.00 mm

250 mm

1шт.

23

KHH0405

MOUNTING CLIP

1шт.

24

162335A1

PLUG

Fuel Tank, Not Illustrated

1шт.
