(08-018-00[01]) - HYDRAULIC CIRCUIT - DIPPER CYLINDER - BOOM (7.25 M) - (WITH VALVE, PRESSURE RELIEF)

Запчасти Case CX800 (08-018-00[01]) - HYDRAULIC CIRCUIT - DIPPER CYLINDER - BOOM (7.25 M) - (WITH VALVE, PRESSURE RELIEF) (08) - HYDRAULICS

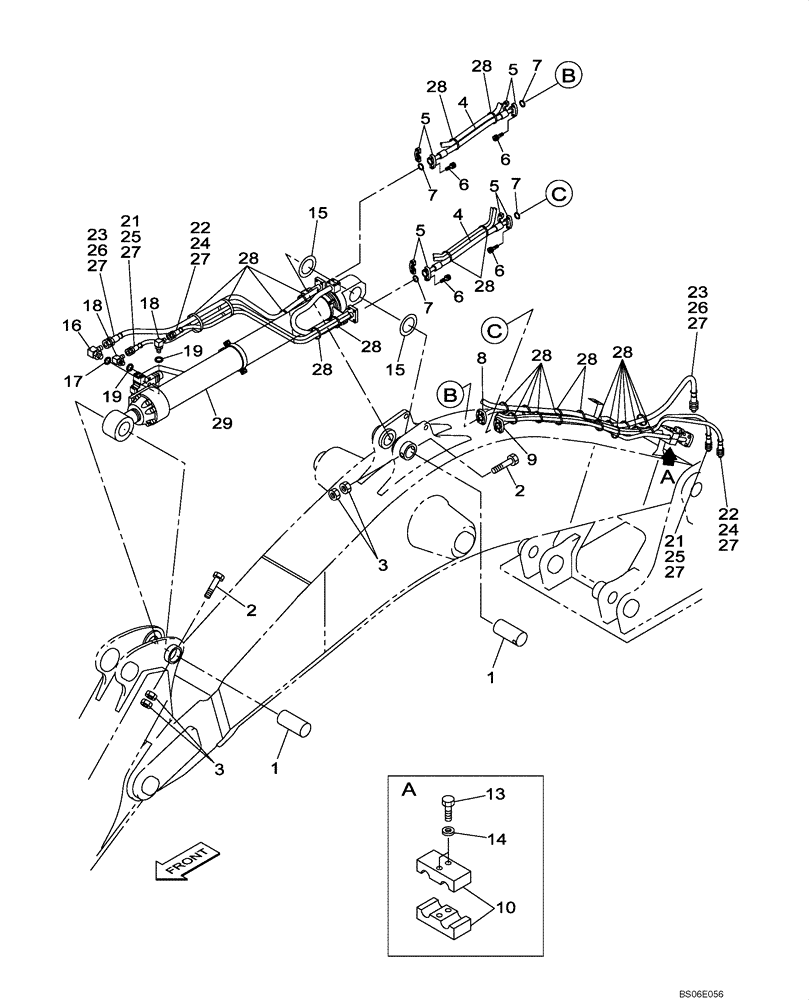

Схема запчастей Case CX800 - (08-018-00[01]) - HYDRAULIC CIRCUIT - DIPPER CYLINDER - BOOM (7.25 M) - (WITH VALVE, PRESSURE RELIEF) (08) - HYDRAULICS
28
17
5
3
23
28
15
21
28
27
1
4
13
27
14
4
28
5
3
16
22
25
6
27
27
22
6
26
28
28
10
5
2
26
2
28
29
7
21
19
8
24
28
15
19
6
9
27
25
7
27
24
6
7
7
18
23
1
28
18
5
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

KUV0025

PIN

2шт.

2

132R030W260N

BOLT,M30 x 2 x 260mm

M30 x 2 x 260

2шт.

3

829-13430

NUT,M30 x 1.5, Cl 10

4шт.

4

KUV0051

HYDRAULIC HOSE,38.10 mm ID x 1550.00 mm

2шт.

5

KTJ0169

FLANGE

8шт.

6

862-16050

HEX SOC SCREW,M16 x 50mm, Cl 12.9

16шт.

7

168211A1

O-RING

4шт.

8

KUV0332

HYD TUBE

1шт.

9

KUV0333

HYD TUBE

1шт.

10

KUV0175

CLAMP BRACKET

2шт.

13

827-16110

BOLT,Hex, M16 x 2 x 110mm, Cl 10.9

2шт.

14

150814A1

WASHER,17mm ID x 32mm OD x 4.5mm Thk

W 16

2шт.

15

KHV0287

SHIM

1шт.

16

157580A1

ELBOW,90 Degree, 3/4" O-Ring x 3/4"

Incl. 17

1шт.

17

154503A1

O-RING

1шт.

18

150916A1

ELBOW,90 Degree, 3/8" O-Ring x 3/8"

Incl. 19

2шт.

19

154475A1

O-RING

1шт.

21

KHJ2557

HOSE

8000 mm

1шт.

22

KHJ2558

HOSE

8300 mm

1шт.

23

KUV0324

HYDRAULIC HOSE,19.00 mm ID x 7700.00 mm

1шт.

24

168877A1

PLASTIC-RUBBER TUBE

7600 mm

1шт.

25

168876A1

PLASTIC-RUBBER TUBE

7200 mm

1шт.

26

KHV0482

PLASTIC-RUBBER TUBE

7500 mm

1шт.

27

150067A1

MOUNTING CLIP

150 mm

6шт.

28

150071A1

MOUNTING CLIP

380 mm

25шт.

29

KUV10610

HYDRAULIC CYLINDER

Arm, Incl. 30, No Other Component Parts Available At Time Of Printing

1шт.

30

KUV0037

BUSHING

Not Illustrated

2шт.
