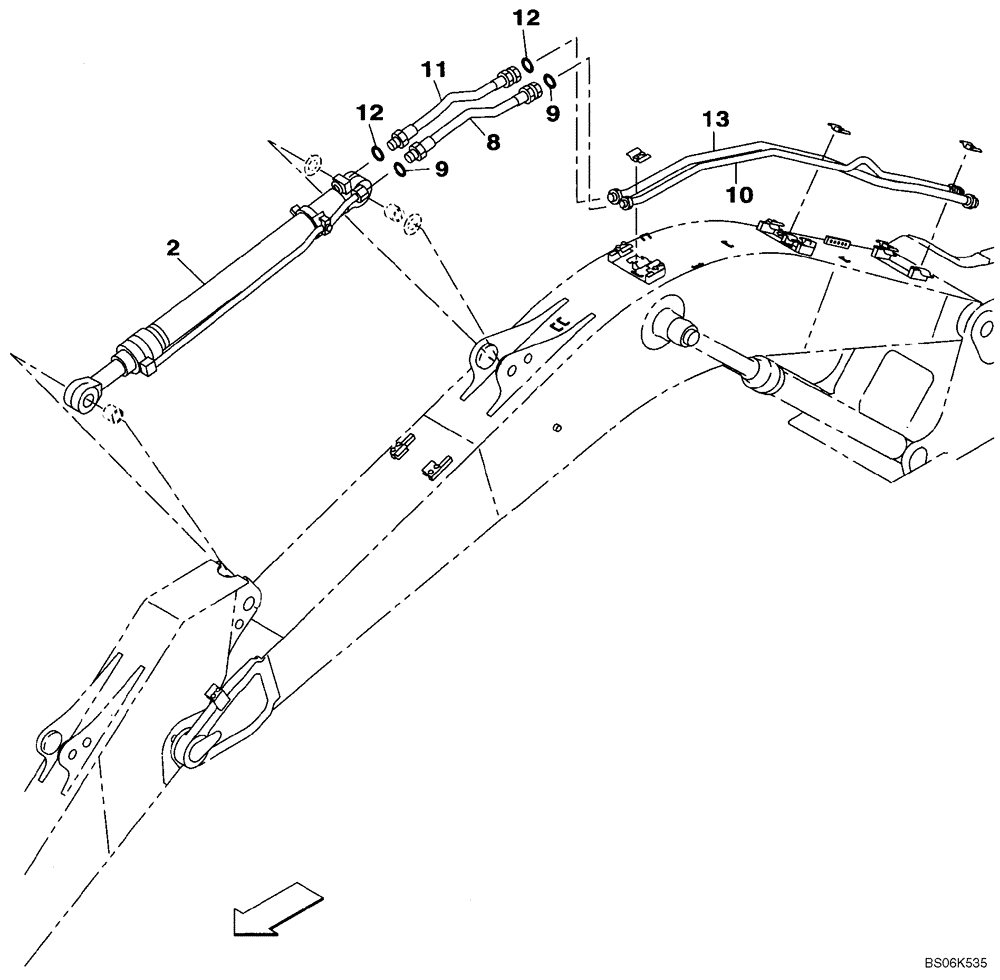

Запчасти Case CX210BNLC (08-12) - HYDRAULICS - ARM CYLINDER LINE (08) - HYDRAULICS

1

KRV19600

HYDRAULIC CYLINDER

Arm; See Figure 08-85

1шт.

1

KRV33000R

REMAN-HYD CYLINDER

CX210BNLC CRAWLER EXCAVATOR TIER 3 (NA), Arm (1/07-), Reman for New PN KRV19600

1шт.

1

KRV33000C

CORE-HYD CYLINDER

Return Number

1шт.

8

KLV11420

HOSE ASSY.,19.00 mm ID x 900.00 mm

Replaces KRV19720

1шт.

9

KHJ1360

O-RING,0.07" Thk x 0.739" ID

2шт.

10

KRV19030Y2

HYD TUBE,20.8 mm ID x 27.2 mm OD

Replaces KRV19030

1шт.

11

KRV25340

HYDRAULIC HOSE,900.00 mm

Replaces KBJ3115

1шт.

12

KHJ1361

O-RING,0.07" Thk x 0.926" ID

2шт.

13

KRV19040Y2

HYD TUBE,26 mm ID x 34 mm OD

Replaces KRV19040

1шт.
