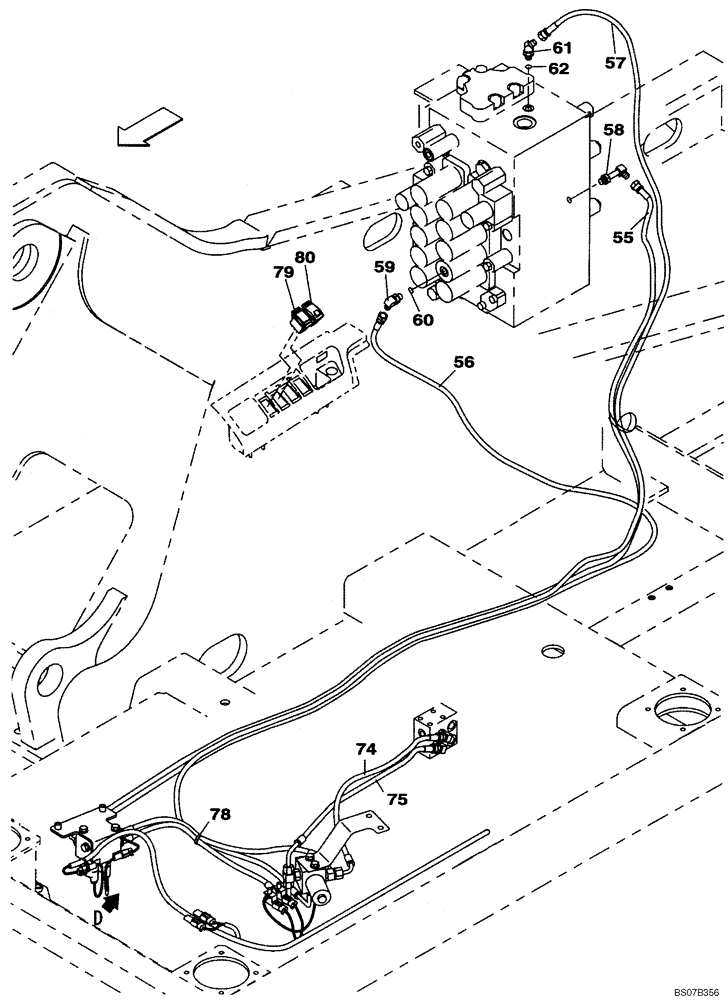

Запчасти Case CX240BLR (08-034) - HYDRAULICS, AUXILIARY - DOUBLE ACTING CIRCUIT, HAND OPERATED (08) - HYDRAULICS

55

KHJ2198

HOSE,6.3mm ID x 2850mm L

2850 mm (112-13/64 in)

1шт.

56

KHJ2165

HOSE

2900 mm (114-3/16 in)

1шт.

57

KHJ12230

HYDRAULIC HOSE

3450 mm (135-13/16 in)

1шт.

58

KHJ1178

ELBOW

1шт.

59

150913A1

ELBOW,90 Degree, 1/4" O-Ring x 1/4"

Incl. 60

1шт.

60

154467A1

O-RING,10.8mm ID x 2.4mm Width

1шт.

61

150933A1

ELBOW

Incl. 62

1шт.

62

154467A1

O-RING,10.8mm ID x 2.4mm Width

1шт.

74

KHJ2086

HOSE,6.3mm ID x 700mm L

700 mm (27-9/16 in)

1шт.

75

KHJ2036

HOSE

750 mm (29-1/2 in)

1шт.

78

150496A1

MOUNTING CLIP

1шт.

79

166351A1

BOLT,Sems, M10 x 20mm

1шт.

80

162538A1

VALVE

1шт.
