(06-01) - TRACK DRIVE ASSY

Запчасти Case CX240BLR (06-01) - TRACK DRIVE ASSY (06) - POWER TRAIN

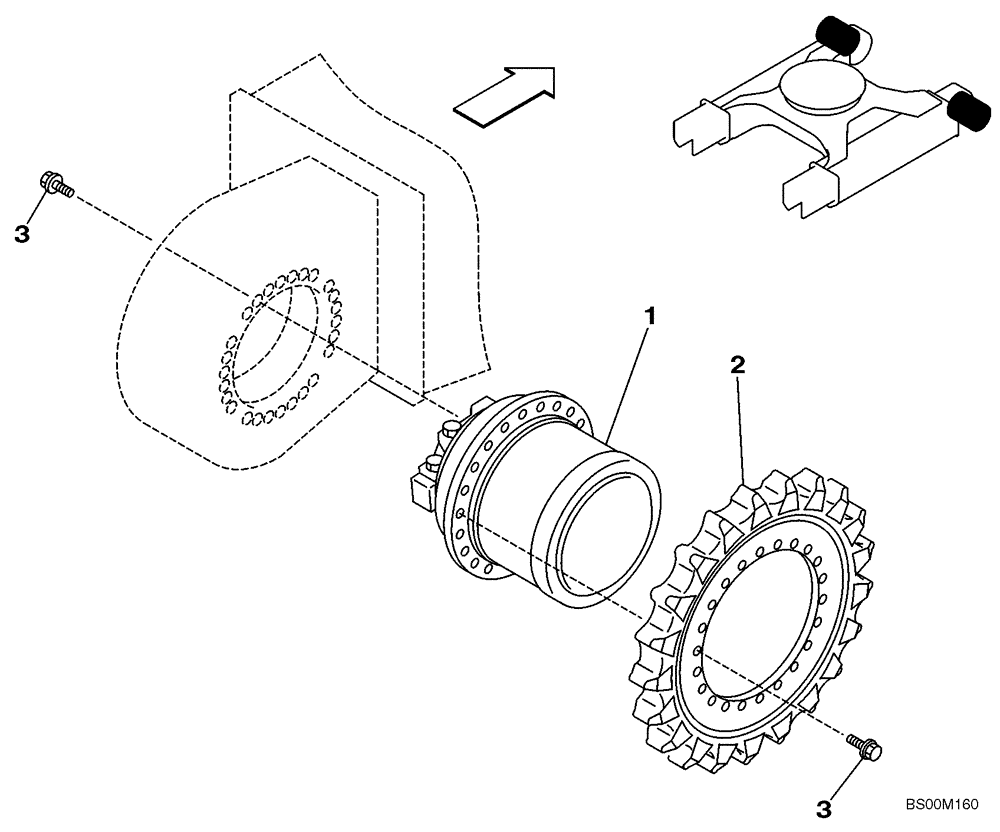

Схема запчастей Case CX240BLR - (06-01) - TRACK DRIVE ASSY (06) - POWER TRAIN
3
1
3
2
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

KBA10290

MOTO-REDUCTION GEAR

Travel; See Figure 06-02 - 06-04

2шт.

1

KBA14420R

REMAN-MOTO REDUCTION

CX240BLR CRAWLER EXCAVATOR TIER 3 (NA), Travel ASSY, (3/07-), Reman for New PN KBA10290

2шт.

1

KBA14420C

CORE-MOTO-REDUCTION UNIT

Return Number

2шт.

2

KRA12900

SPROCKET

Replaces KRA10160

2шт.

3

167584A1

BOLT,Sems, M16 x 60mm

100шт.
