(08-50) - HYDRAULICS, AUXILIARY - DOUBLE ACTING CIRCUIT, TRIGGER ACTIVATED

Запчасти Case CX470B (08-50) - HYDRAULICS, AUXILIARY - DOUBLE ACTING CIRCUIT, TRIGGER ACTIVATED (08) - HYDRAULICS

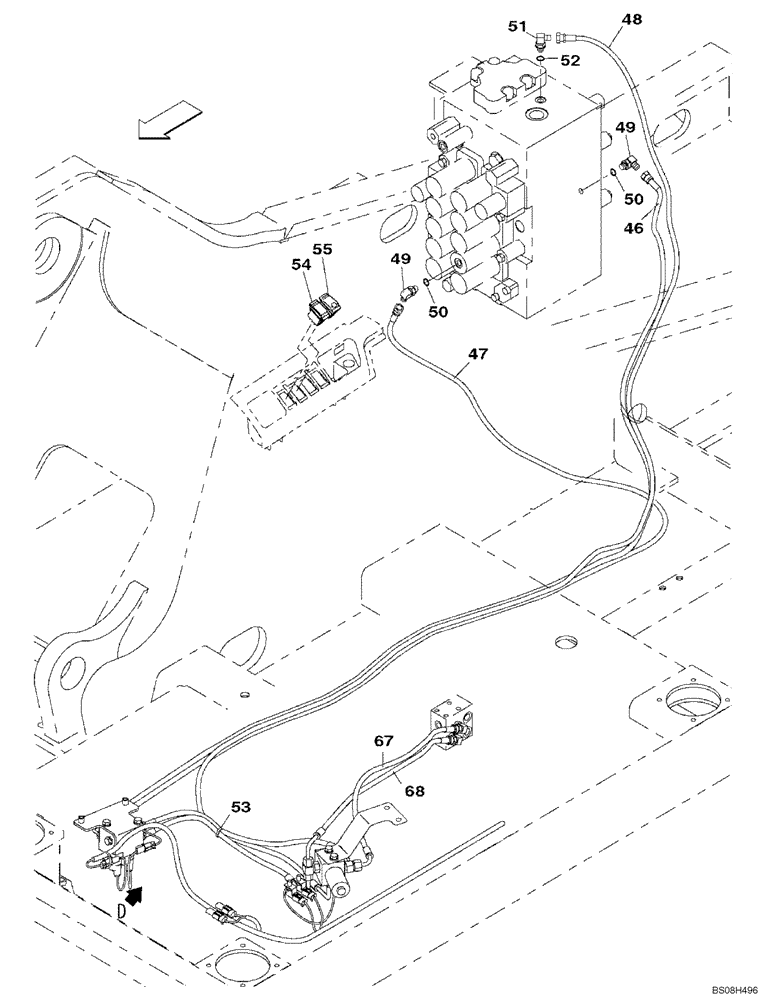

Схема запчастей Case CX470B - (08-50) - HYDRAULICS, AUXILIARY - DOUBLE ACTING CIRCUIT, TRIGGER ACTIVATED (08) - HYDRAULICS
52
51
54
55
68
67
49
53
48
46
49
50
47
50
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

46

KHJ17990

HOSE

3150mm

1шт.

47

KHJ18960

HOSE

6X3400mm

1шт.

48

KHJ16310

HOSE

6X3850mm

1шт.

49

156554A1

ELBOW

2шт.

50

154467A1

O-RING,10.8mm ID x 2.4mm Width

1шт.

51

150913A1

ELBOW,90 Degree, 1/4" O-Ring x 1/4"

1шт.

52

154467A1

O-RING,10.8mm ID x 2.4mm Width

1шт.

53

150496A1

MOUNTING CLIP

250mm

1шт.

54

KHR15020

LIMIT SWITCH,Double-acting

1шт.

55

KHR14460

SWITCH,Low Flow

1шт.

67

KHJ2086

HOSE,6.3mm ID x 700mm L

6X700mm

1шт.

68

KHJ2036

HOSE

6X750mm

1шт.
